FMR35190511-2RS-ECO - Datasheet
ECO
Category Information

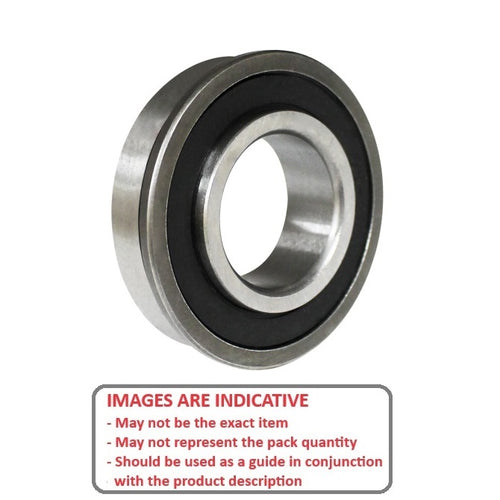

Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

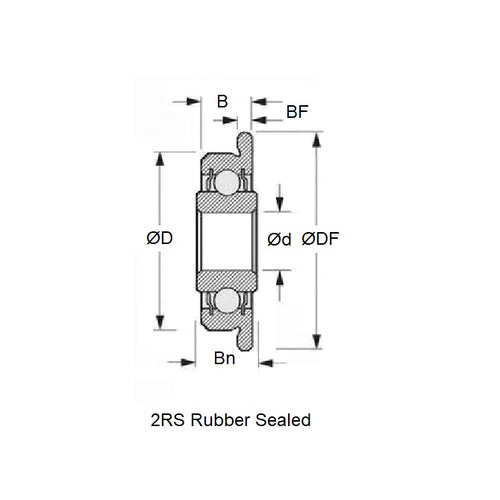

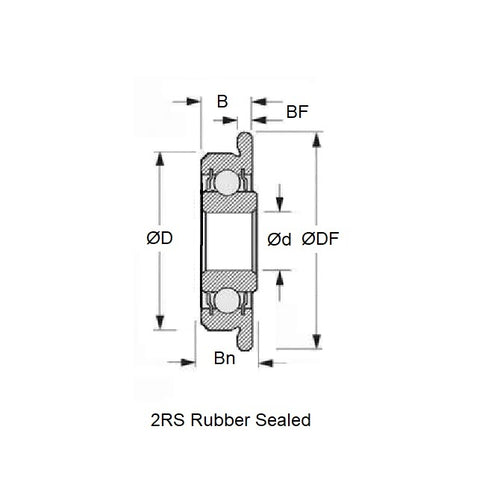

- ID (d)
:
19.050
mm
(Equiv. 0.75 in.) - OD (D)
35.000
mm
(Equiv. 1.378 in.) - Width (B)
11.000
mm
(Equiv. 0.433 in.) - Inner Ring Width (Bn) Extended Flanged Side Only 13.00 mm
- Flange Diameter (DF) 37.100 mm
- Flange Width (BF) 2.000 mm
- Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type
- Lubrication Name
- Basic Part FMR35190511
- Limiting Speed 0
- Cage Type Standard
- Static Load Rating KGf 0
- Dynamic Load Rating KGf 0
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type ZZ
