Miniature Bearings Australia
NSC-0191-0254-0127-ST - Datasheet
MBA
Category Information

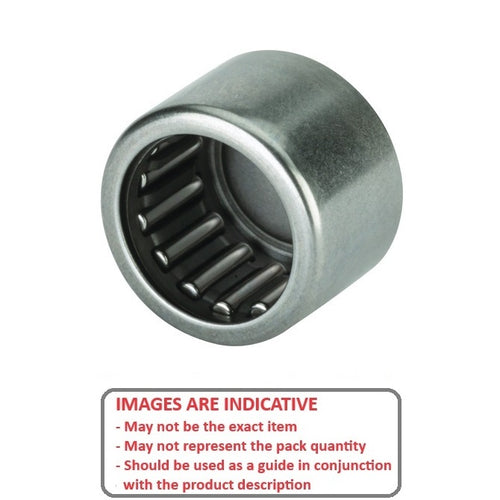

Bearings - Needle Roller without Inner Ring - Shell Type - Closed EndClosed End Shell Type Needle Roller without Inner Ring Bearings. Light Weight.
- Pair these bearings with a suitable inner ring, or run them directly on a high quality shaft.
- An expanded range may be available on special order. Please enquire.
- Compact Design.
Product Data

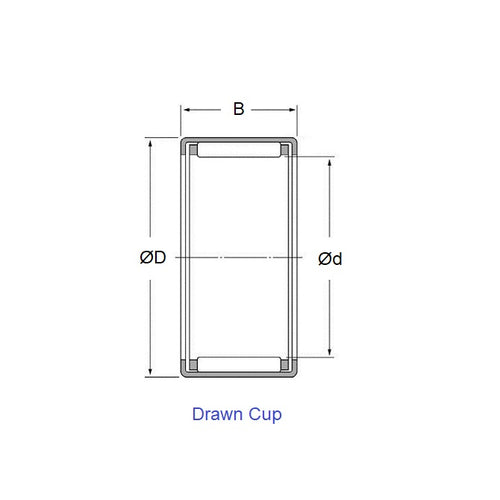

- Shaft Diameter (d)
:
19.050
mm
(Equiv. 0.75 in.) - OD (D)
25.400
mm
(Equiv. 1 in.) - Width (B)
12.700
mm
(Equiv. 0.5 in.) - Basic Dynamic Load Rating 1407 Kgf
- Basic Static Load Rating 2175 Kgf
- Limiting Speed Grease 3025 RPM
- Limiting Speed Oil 5500 RPM
- Cage Type Steel
- Seals None
- Type Closed End
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- Torrington BAM128
- NSC019102540127FC
