W0191-T-033-048-L-S4 - Datasheet
TW
Category Information

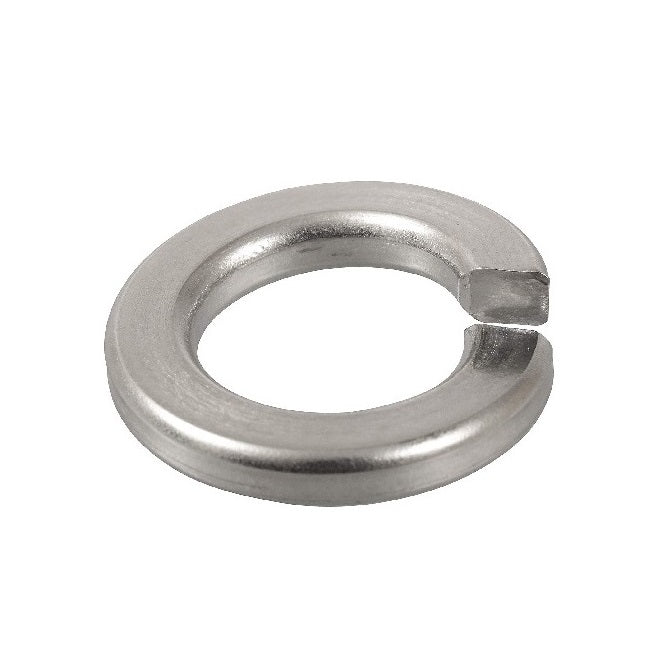

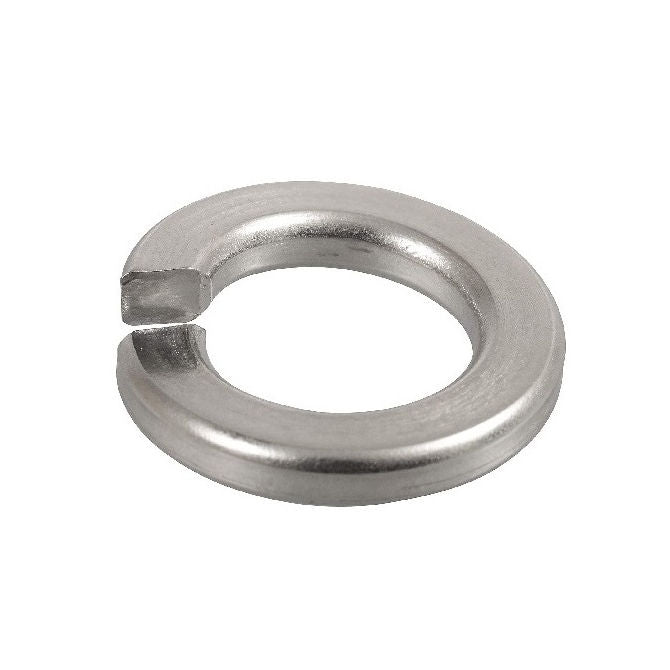

Washers - Lock - Split - Stainless SteelStainless Steel Split Lock Washers. Split type. 304 stainless steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
- Nominal Inside Diameter
:
19.05
mm
+ 0.8 / - 0.0
(Equiv. 0.75 in.) - Outside Diameter
32.5
mm
(Equiv. 1.28 in.) - Thickness
4.80
mm
(Equiv. 0.189 in.) - Info 304 Stainless
- Info 3/4
- Info ANSI B18.21.1
- Actual ID (Ref) 19.3 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 754084
- 92146A036
