CCE-01905-B - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Beryllium Copper

Beryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Shaft Diameter (Ds) : 19.05 mm
    (Equiv. 0.75 in.)
  • Clip Thickness (T) 1.07 mm +/- 0.076
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 17.88 mm +/- 0.051
    (Equiv. 0.704 in.)
  • Approx. Loose Circlip ID (A) 17.60 mm
  • Groove Width (W) 1.20 mm
  • Material Beryllium Copper
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor SH-075-BC
  • SH075BC
  • N1400-0075BC
  • N14000075BC
View full details

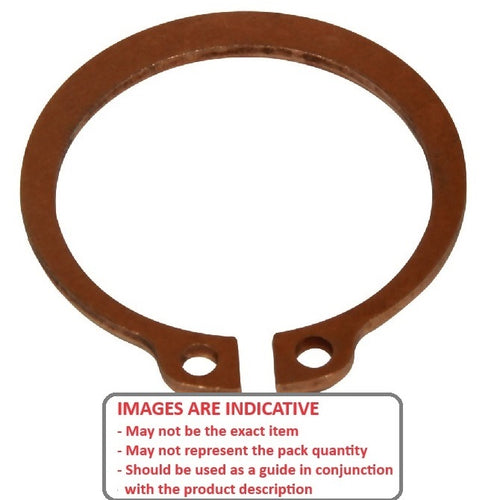

CCE-01905-BDiagramCCE-01905-BImage
