ECL-0161-0191-C-KR - Datasheet
MBA
Category Information

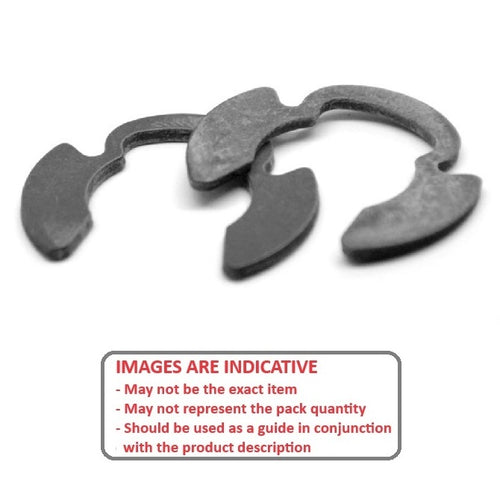

Retaining Rings - E-Clips - KlipringKlipring E-Clips Retaining Rings. Also known as Poodle Rings - Imperial - N1504 / NKP
- An expanded range may be available on special order. Please enquire.
Product Data

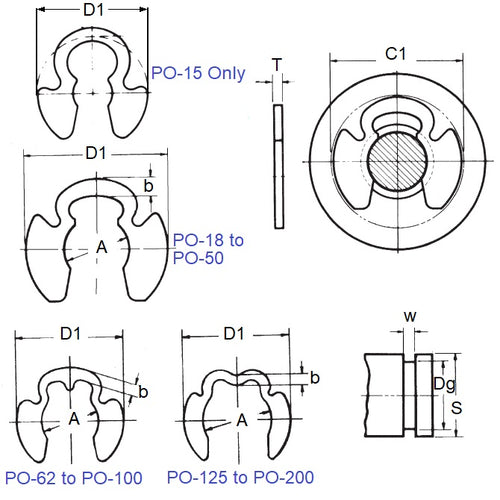

- Minimum Rec. Shaft Dia (S)
:
19.05
mm
+ 3.05 / - 0.00
(Equiv. 0.75 in.) - Groove Dia. (Dg)
16.05
mm
+/- 0.252
(Equiv. 0.632 in.) - Clip Thickness (T)
1.58
mm
+/ - 0.076
(Equiv. 0.062 in.) - Clip OD Loose (D1) 15.09 mm
- Groove Width (W) 1.73 mm
- Maximum Rec. Shaft Dia (S) 22.10
- Clip OD in groove (C1) 29.72 mm
- Min. Extension (n) 3.00
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5304-075
- 98420A152
- NoCor PO-075
- Rotor Clip PO-075
- PO075
- 5304075
