ECL-0147-0191-S15 - Datasheet
MBA
Category Information

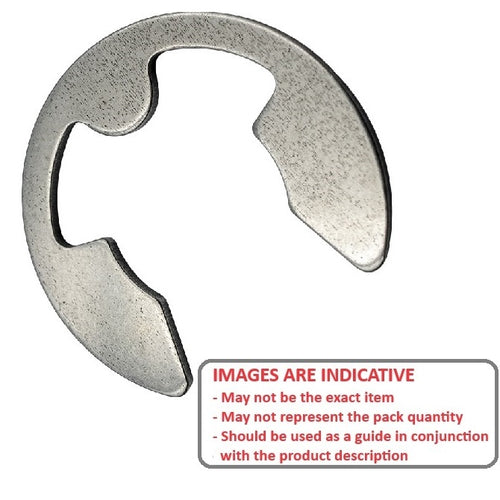

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
19.05
mm
+ 3.05 / - 0.00
(Equiv. 0.75 in.) - Groove Dia. (Dg)
14.73
mm
+ 0.076 / - 0.000
(Equiv. 0.58 in.) - Clip Thickness (T)
1.27
mm
+/ - 0.050
(Equiv. 0.05 in.) - Clip OD Loose (D1) 28.45 mm
- Groove Width (W) 1.42 mm
- Maximum Rec. Shaft Dia (S) 22.10
- Clip OD in groove (C1) 28.96 mm
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-075-SS
- Ellison E-075-SS
- NoCor E-075-SS
- Rotorclip E-075-SS
- 5133075SS
- E075SS
- N15000075KSF
- N1500-075-SS
- N1500075SS
- N1500-0075KSF
- S73LW2ER13375
- S73LW2-ER133-75
