WRE-0191-RD-O - Datasheet
MBA
Category Information

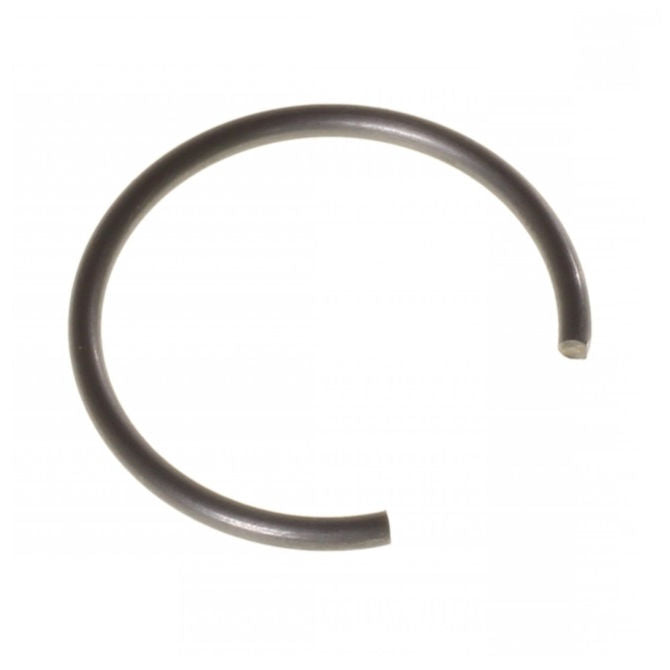

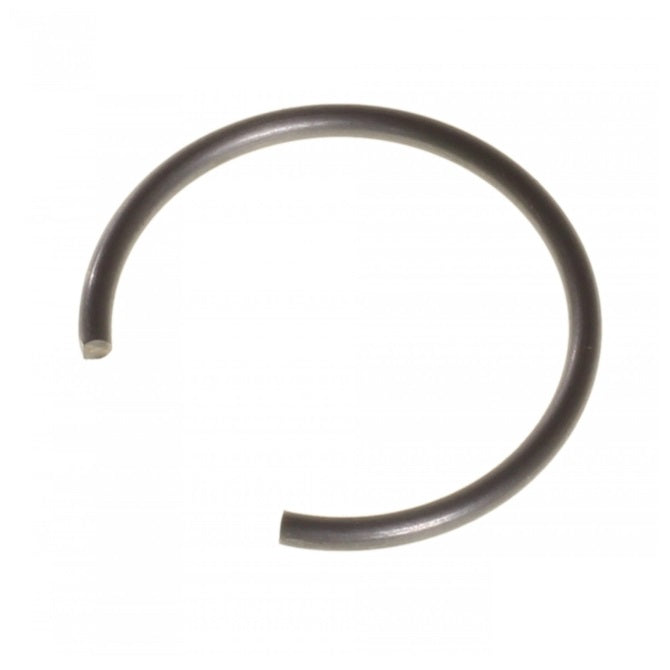

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
19.05
mm
(Equiv. 0.75 in.) - Clip Thickness (T)
1.50
mm
+/- 0.06
(Equiv. 0.059 in.) - Groove Dia. (Dg)
18.14
mm
+ /- 0.08
(Equiv. 0.714 in.) - Approx. Loose Circlip ID (A) 17.93 mm
- Radial Wall (S) min/max 18.14 mm
- Groove Width (W) 1.55 mm
- Free Outside Dia (Dr) 20.93
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-430
- Arcon XRO-430
- NoCor XRO-430
- 200430
- XRO430
- WRE0191SRO
