Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless SteelStainless Steel Medium-Heavy Spiral Rings External Retaining Rings. AME / WST / RST - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
- This two/three turn design is easier to install than the heavy duty RRN option.
- Equivalent to Associated Spring: AME, Smalley: WST, Spirolox and Ramsey: RST

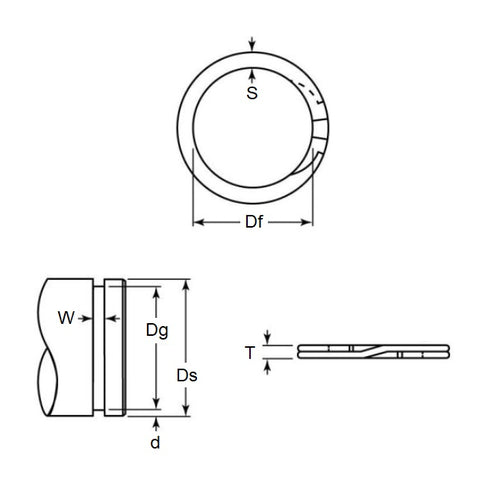

Product Data
- Shaft Diameter (Ds)
:
19.05
mm
(Equiv. 0.75 in.) - Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.) - Groove Dia. (Dg)
18.16
mm
(Equiv. 0.715 in.) - Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
- Radial Wall (S) min/max 1.65 mm +/- 0.10
- Groove Width (W) 1.21 mm +/- 0.08
- Approx. Loose Clip OD 21.21 +/- 0.04
- Groove Depth (d) 0.46
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Smalley WST-075-S02
- WST075S02
