P-UC204-12-AGL - Datasheet
KMS
Category Information

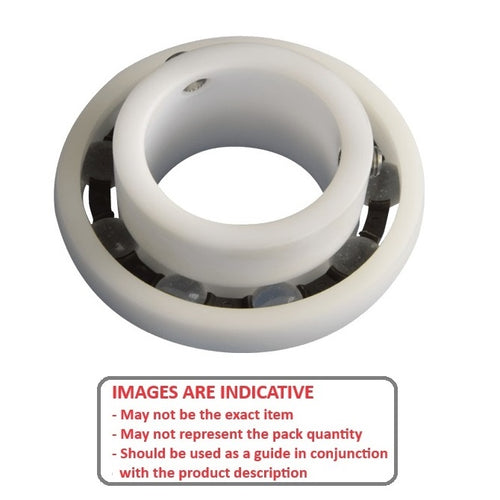

Bearings - Spherical OD - Suits Plastic Housing - Acetal and GlassAcetal and Glass Suits Plastic Housing Spherical OD Bearings. Insert bearings ideal for wet conditions. Similar to standard wide inner ring bearings for P, F, Fl type housings.
- Spherical OD bearings are similar to a standard single row ball bearing, except that the spherical OD allows for them to be swivel assembled into a spherical seating housing.
- Load and speed calculations are for reference only. Testing is recommended.

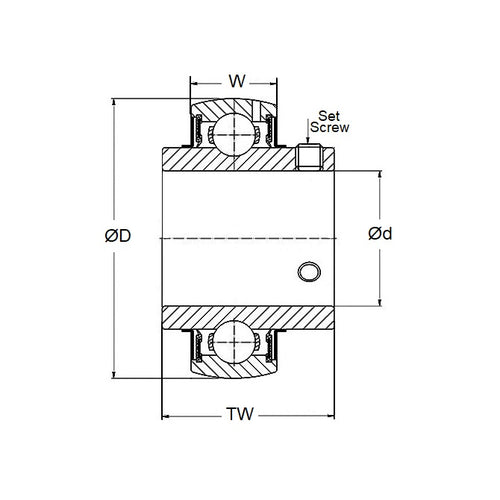

Product Data
- Inside Diameter : 19.050 mm
- Outside Diameter 47.000 mm
- Bearing Width 31.000 mm
- Suits Housing P204PE / F204PE / FL204PE / FB204PE
- Type Single Row Ball
- Max RPM 840
- Load Capacity (Dynamic) 34.8 Kg
- Load Capacity (Static) 23.2 Kg
- Material Acetal with Glass Balls
