Miniature Bearings Australia
TLB-1210-0191 - Datasheet
MBA
Category Information

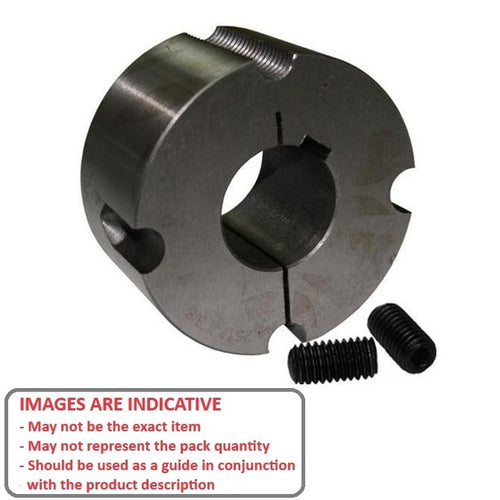

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

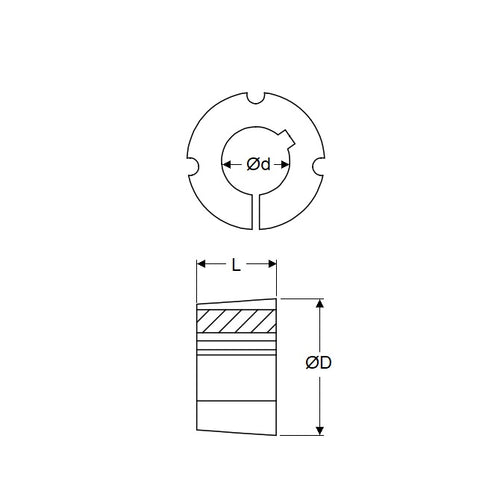

- Bore (d)
:
19.050
mm
(Equiv. 0.75 in.) - Large End Dia. (D)
47.5
mm
(Equiv. 1.87 in.) - Length (L)
25.4
mm
(Equiv. 1 in.) - Taperlock Series 1210
- No of Screws 2
- Screw Size 3/8x5/8 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K133
- TLB121034
- TLB-1210-3-4
