Miniature Bearings Australia
COL-01905-036-37-GF-AB - Datasheet
MBA
Category Information

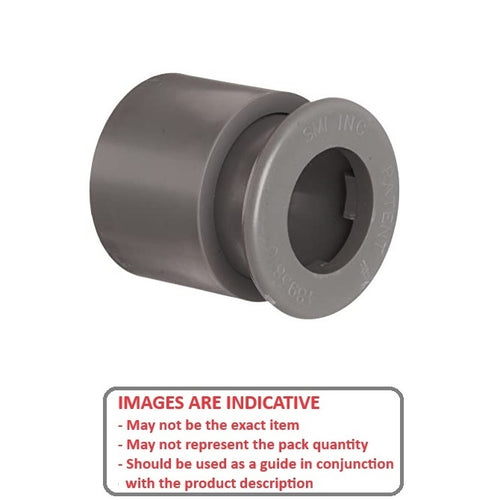

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
19.050
mm
(Equiv. 0.75 in.) - Outside Diameter (D)
35.60
mm
(Equiv. 1.402 in.) - Overall Width (S)
37.1
mm
(Equiv. 1.461 in.) - Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- A7Z340750SC
- A7Z34-0750SC
- SMI750
- SMI-750
