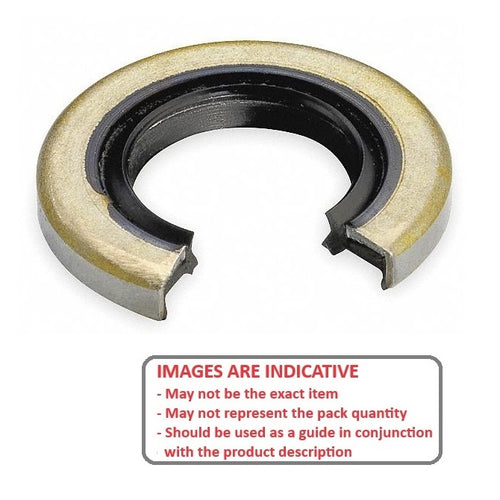

TLM-315RS - Datasheet
MBA
Category Information
Seals - For Linear Bearings - OpenOpen For Linear Bearings Seals. This is the main category in this series
Product Data

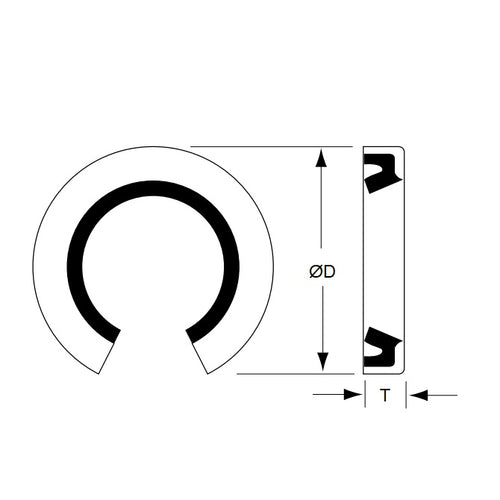

- Inside Diameter
:
19.050
mm
(Equiv. 0.75 in.) - Outside Diameter
31.852
mm
(Equiv. 1.254 in.) - Thickness (T)
3.175
mm
(Equiv. 0.125 in.) - Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- Thompson OPN-S-750
- OPNS750
