COL-01905-032-14-NY - Datasheet
MBA
Category Information

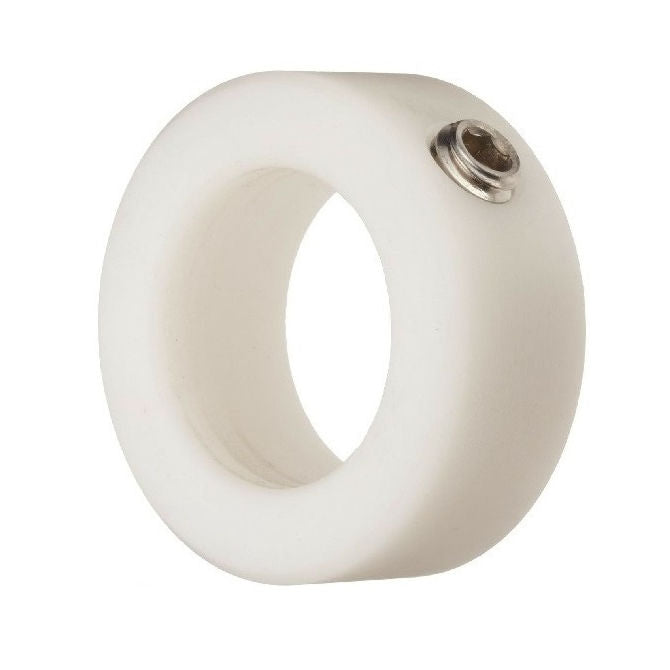

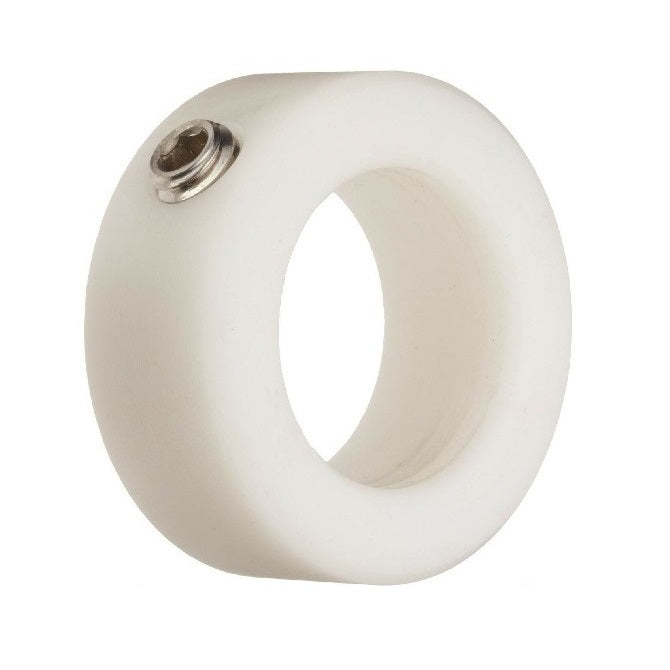

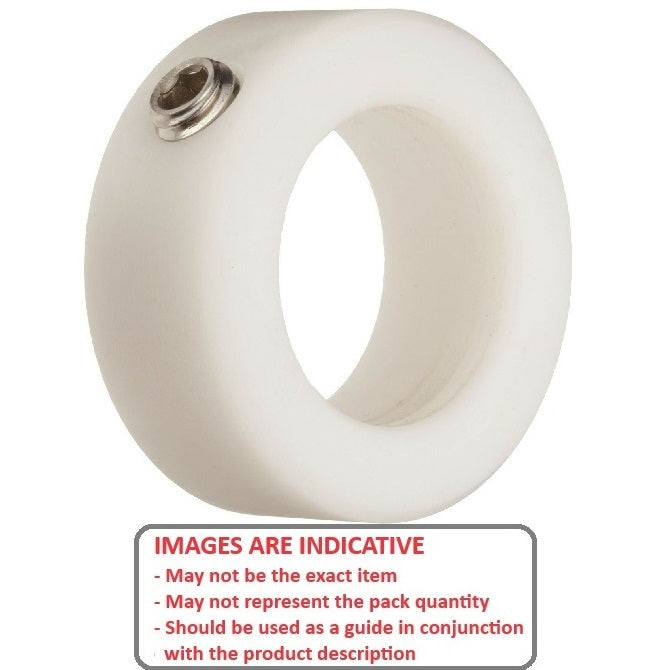

Collars - Shaft - Standard - NylonNylon Standard Shaft Collars. Standard one piece nylon shaft collar with set screw
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d) : 19.050 mm
- Outside Diameter (D) 31.75 mm
- Overall Width (S) 14.3 mm
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SC-0750-NY
- NoCor® SC-0750-NY
- SC0750NY
