W0191-F-029-0318-K-C - Datasheet

MBA

Category Information

Spacers - Arbor

Arbor Spacers. Flat arbor shim washers with keyway groove.

  • Spacers with a notch or tab, fit snugly on keyed shafts to align and space gears, sprockets, and bearings.
  • Often used to accurately space saw blades, cutters and other machinery.

Product Data

  • ID (d) : 19.050 mm + 0.152 / - 0.025
    (Equiv. 0.75 in.)
  • OD (D) 28.575 mm + 0.000 / - 0.127
    (Equiv. 1.125 in.)
  • Thickness / Length (T) 3.175 mm + /- 0.025
    (Equiv. 0.125 in.)
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • PB24179
    • PB-24179
    • A7C8D24125
    • A7C8-D24125
    View full details

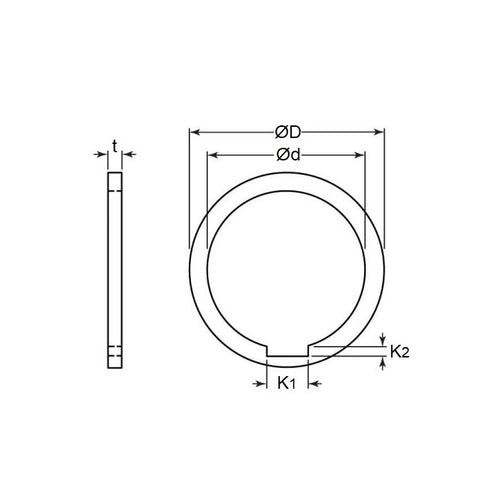

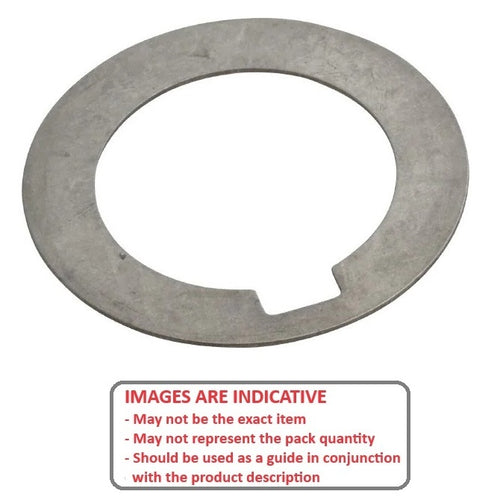

    W0191-F-029-0318-K-CDiagramW0191-F-029-0318-K-CImage
