VT104RS - Datasheet

MBA

Category Information

Bushings - Tension

Tension Bushings. Like a heavy duty roll pin.

  • Made of a high carbon spring steel with high elasticity, resilience and wear characteristics.
  • Designed to replace solid steel tubular and case hardened bushings because they are close tolerance, self-retaining and through hard.
  • Insertion can be easily accomplished with a hammer and drift.
  • Ideal for high load/low-speed operation in articulating or continuous applications.

Product Data

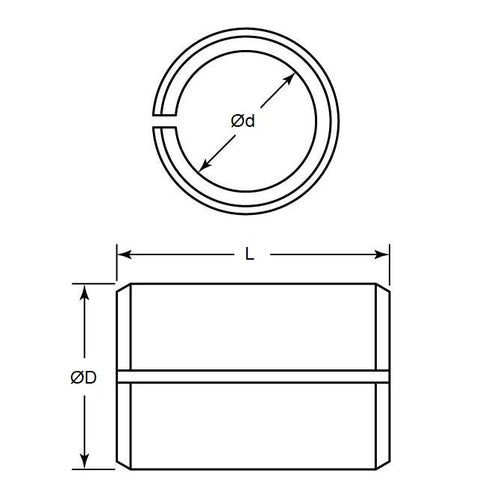

  • Inside Diameter (ID) : 19.050 mm
    (Equiv. 0.75 in.)
  • Outside Diameter (OD) 25.400 mm
    (Equiv. 1 in.)
  • Length (L) 19.050 mm
    (Equiv. 0.75 in.)
  • ID after insertion 19.13 - 19.23 mm
  • OD before insertion 25.91 - 26.42 mm

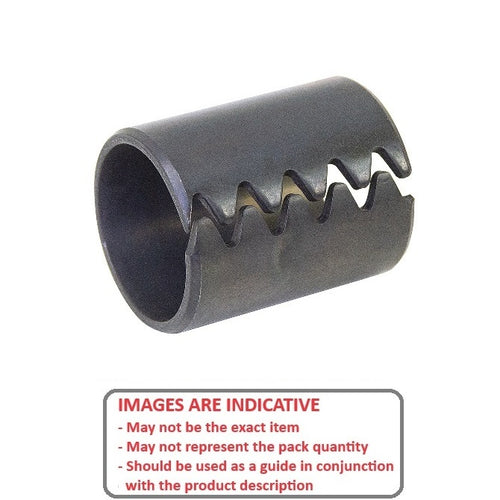

  • Slot Style Wavy
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 58365K11
    • VT-104
    • VT104
