Miniature Bearings Australia
AU-420RS - Datasheet
MBA
Category Information
Bumpers - Cylindrical CounterboredCylindrical Counterbored Bumpers. With steel core and washer moulded inside. Counterbored hole to accept a socket head cap screw.
- Rubber bumper designed with a large, shallow hole on one side, allowing a fastener's head to be sunk below the surface for a flush or protected fit.
- Commonly used for impact protection on machinery, loading docks, and equipment, as well as for vibration dampening and to prevent sliding on surfaces.
- Also see Mounts - Buffers.
Product Data

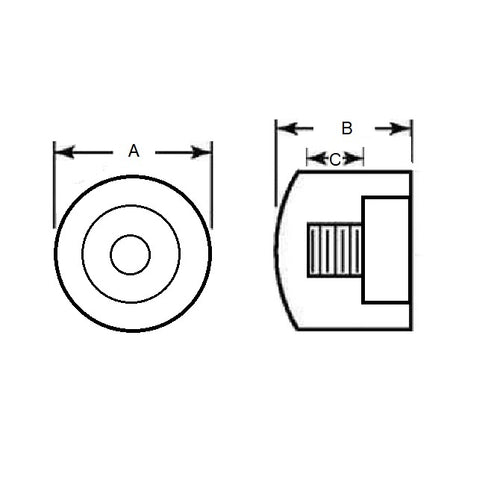

- Diameter (A) : 19.050 mm
- Height (B) 19.050 mm
- Hole Diameter 6.35 mm
- End Flat
- Durometer 40A
- Colour Yellow
- Material Polyurethane 40A
