Miniature Bearings Australia
FRB-60RS - Datasheet
MBA
Category Information

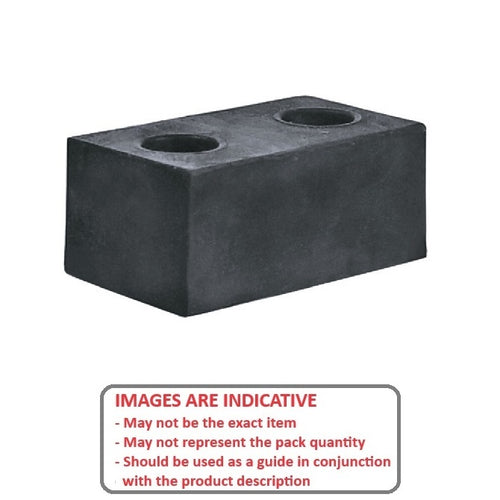

Bumpers - Square and Rectangular - Steel Plated - NeopreneNeoprene Steel Plated Square and Rectangular Bumpers. With drilled and counterbored holes for mounting. Neoprene bonded to steel plate.
Product Data

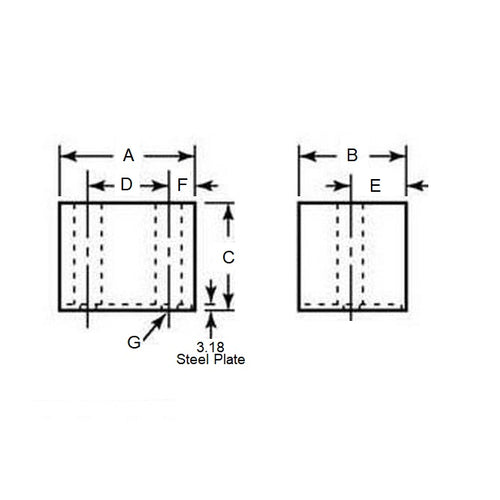

- Length (A)
:
19.050
mm
(Equiv. 0.75 in.) - Width (B)
19.050
mm
(Equiv. 0.75 in.) - Height (C)
15.875
mm
(Equiv. 0.625 in.) - Length Centre Hole (F) 9.525
- Hardness 80A
- No. of Holes 1
- Hole Size (G) 6.350
- Width Centre Hole (E) 9.525 mm
- Material Neoprene Rubber
