FRB-0RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

    • Diameter (A) : 19.050 mm
      (Equiv. 0.75 in.)
    • Height (B) 15.875 mm
      (Equiv. 0.625 in.)
    • Thread 10-24 UNC (4.76mm)
    • Thread Length 6.350 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 9.525
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 9546K106
      View full details

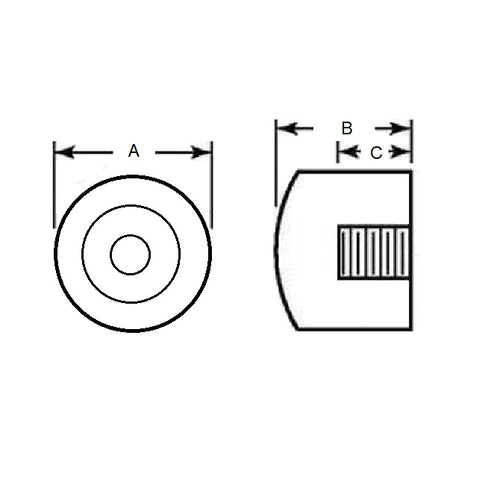

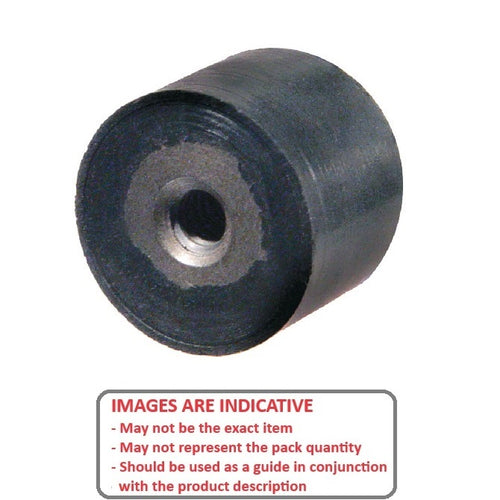

      FRB-0RSDiagramFRB-0RSImage
