Category Information

Bumpers - Cylindrical Male Thread - Standard

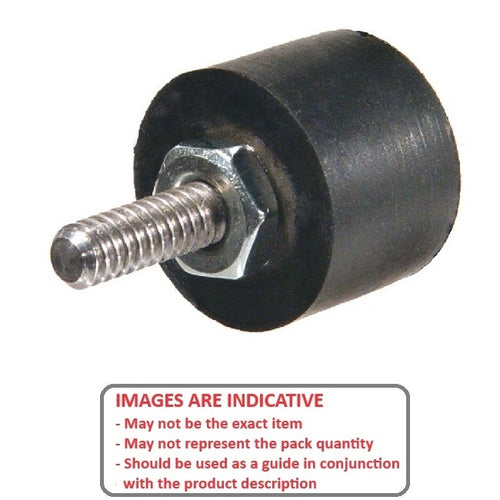

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

  • Rubber body and a threaded metal stud, designed to absorb impact, dampen vibrations, and reduce noise.
  • The male thread allows for easy installation by screwing directly into a pre-tapped hole or by securing a nut on the opposite side of the surface.
  • These are used in applications like machinery, vehicles, and industrial equipment to protect surfaces and components from damage.

Product Data

  • Diameter (A) : 19.050 mm
    (Equiv. 0.75 in.)
  • Height (B) 15.875 mm
    (Equiv. 0.625 in.)
  • Thread 10-32 UNF (4.76mm)
  • Thread Length 12.700 mm
  • End Curved
  • Durometer 45A
  • Colour Black
  • 4.750
  • Material Neoprene Rubber
Country of Origin: US
