BF0191-0119-0191-DS - Datasheet
MBA
Category Information

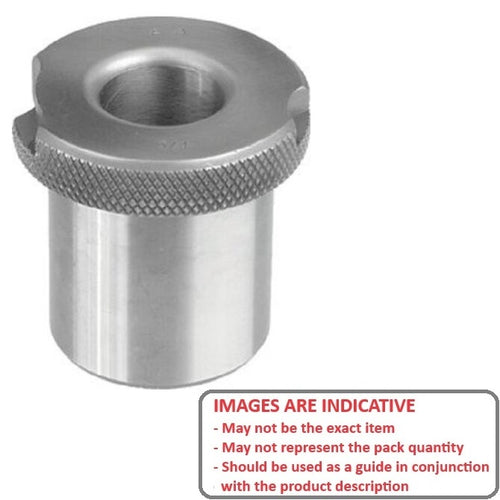

Bushings - Drill - Flanged - Slip FitSlip Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Used with fixed or slip renewable bushings.
- Permanently pressed into the jig plate creating a precise location point.
- Hardness: RC 62-64
Product Data

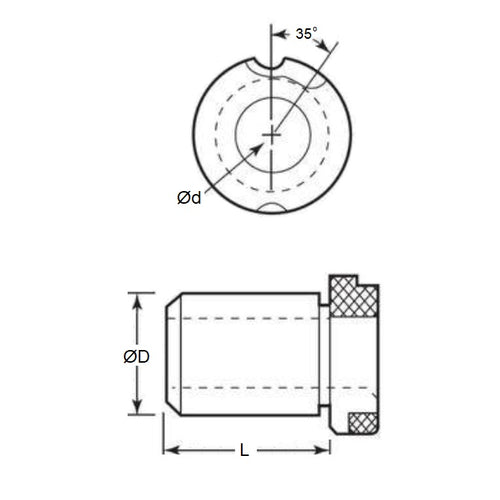

- Outside Diameter (OD)
:
19.050
mm
+ 0.0000 / - 0.0051
(Equiv. 0.75 in.) - Drill Size
11.906
mm
+ 0.0025 / + 0.0127
(Equiv. 0.469 in.) - Length
19.050
mm
(Equiv. 0.75 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- BSF-25200
- BSF25200
