BF0115-0191-0191-DP - Datasheet
MBA
Category Information

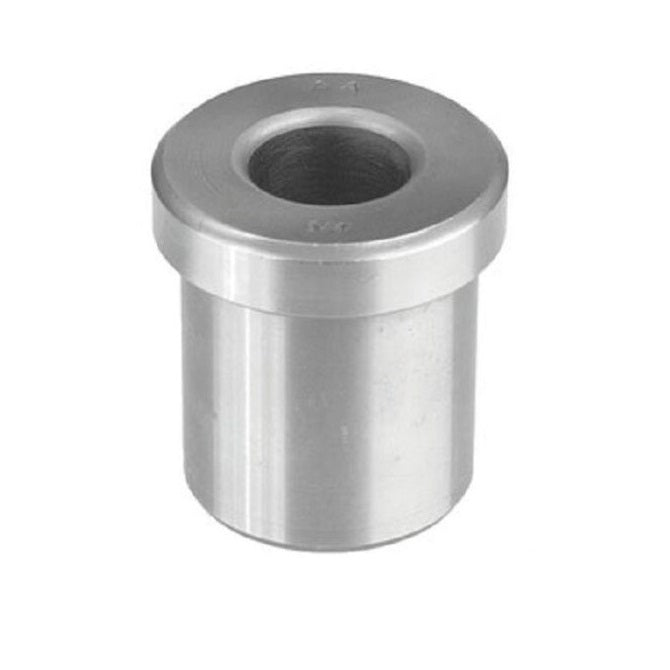

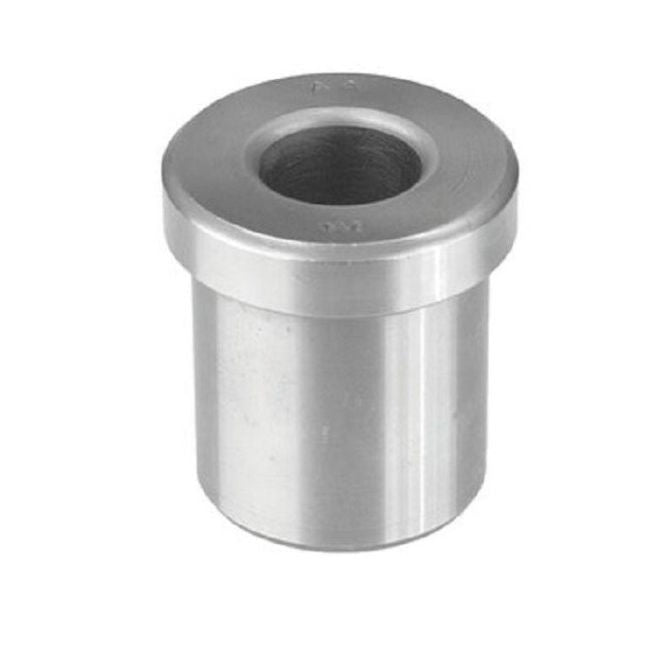

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD)
:
19.050
mm
+ 0.0381 / + 0.0457
(Equiv. 0.75 in.) - Drill Size
11.509
mm
+ 0.0025 / + 0.0127
(Equiv. 0.453 in.) - Length
19.050
mm
(Equiv. 0.75 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A282
- BHT31060
- BHT-31060
