CP-191K-191K-38-057-R1-SC - Datasheet

MBA

Category Information

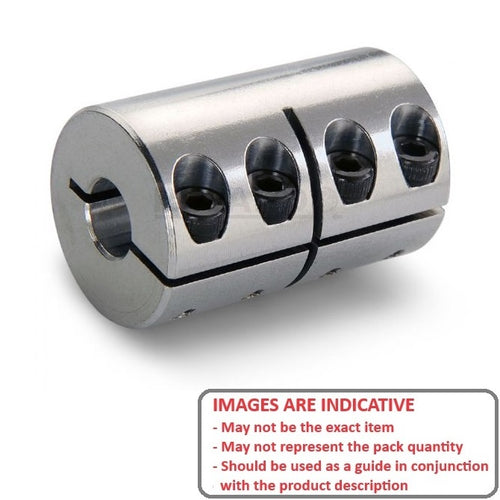

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

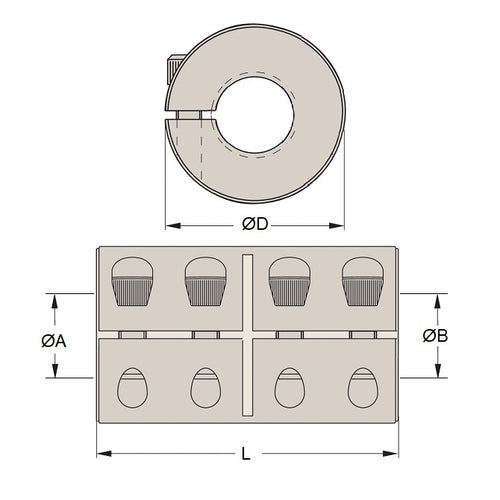

  • Bore (b1) : 19.050 (Keyed) mm
    (Equiv. 0.75 in.)
  • Bore (b2) Keyed 19.05 mm
  • OD (D) 38.100 mm
    (Equiv. 1.5 in.)
  • Length (L) 57.150 mm
  • Features 4.763 Keyway
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 61005K144
    • CC110
    • CC-110
