REM-191-L-PP - Datasheet
MBA
Category Information

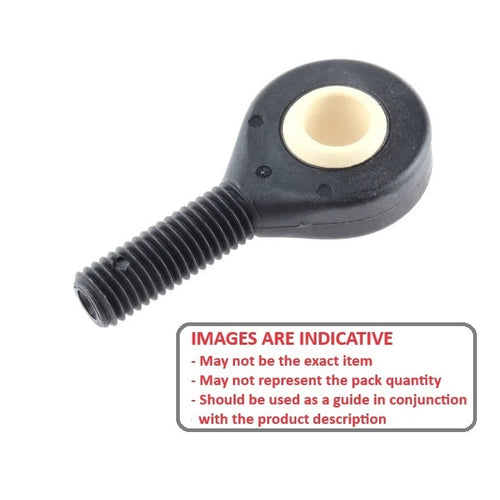

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
19.050
mm
(Equiv. 0.75 in.) - Overall Length (L)
95.25
mm
(Equiv. 3.75 in.) - Thread Size 3/4-16 UNF Left
- Min. Thread Length (l2) 44.45 mm
- Head Width (W) 15.06 mm
- Eye Width (W1) 22.23 mm
- Head Diameter (D) 44.45 mm
- Centre Height (l1) 73.03 mm
- Grease Nipple No
- Max Angle of Pivot 22 °
- Max Torque Strength 70.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K581-LEFT
- Igus KALI-12
- KALI12
- 1064K581LEFT
- S62GMR075175L
- S62GMR-075175L
