AR225RS - Datasheet

MBA

Category Information

Leadscrew - Nuts - Imperial - Acme - Plastic

Plastic Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Screw Outside Diameter : 19.050 mm
    (Equiv. 0.75 in.)
  • Number of Threads Per Inch 6
  • Number of Starts 1
  • Lead 4.233 mm
  • External Thread 1-18 (25.4mm)
  • Direction Right Hand
  • Overall Length 31.75 mm
  • Thread Length 12.70 mm
  • Nut Diameter 28.45 mm
  • Material Plastic
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • AR225
    • AR-225
    View full details

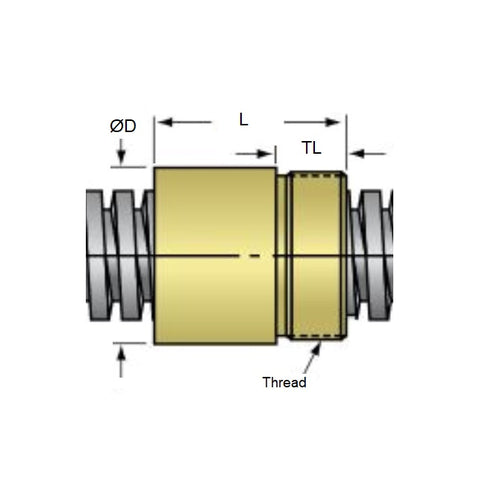

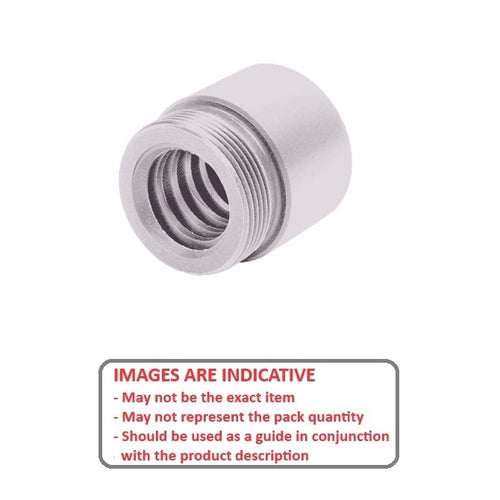

    AR225RSDiagramAR225RSImage
