TLM-1958RS - Datasheet

MBA

Category Information

Linear - Rail Supports - With Shaft - Standard

Standard With Shaft Rail Supports Linear. Includes linear shafting.

  • Includes shaft to h6 tolerances.
  • Support is made from aluminium

Product Data

  • Suitable Shaft Size (d) : 19.050 mm
    (Equiv. 0.75 in.)
  • Height to Shaft Centre (H) 38.1 mm
    (Equiv. 1.5 in.)
  • Length (+0/-1.59mm) 1219.2 mm
    (Equiv. 48 in.)
  • Foot Height (V) 6.350 mm
  • Base Width (A) 44.45 mm
  • Support Angle (a) 20 °
  • Hole Spacing (T) 152.4 mm
  • Base Mtg. Hole (U) 5.588 mm
  • Shaft Mtg. Hole (O) 5.588 mm
  • Bolt Hole Centres (E) 31.75 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 59585K54
    View full details

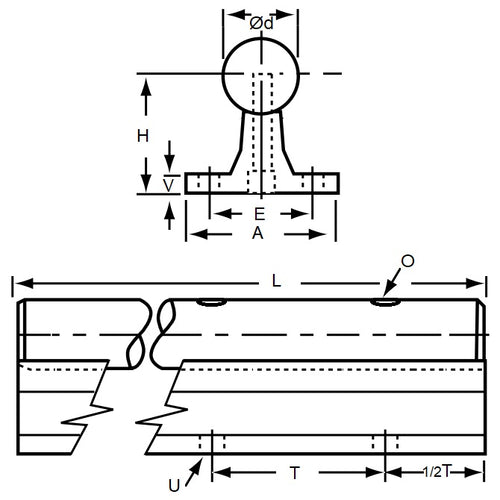

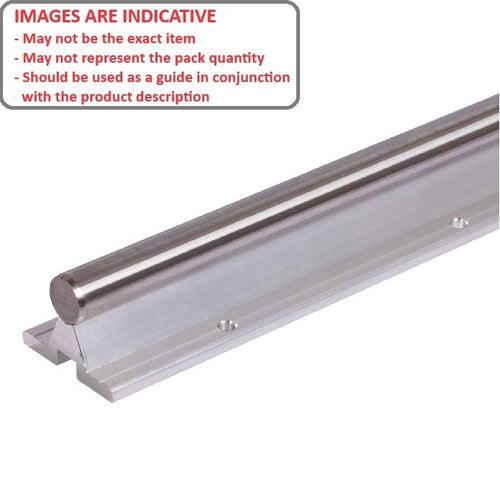

    TLM-1958RSDiagramTLM-1958RSImage
