NCF20RS - Datasheet

MBA

Category Information

Cam Followers - Bronze Bushing Self Lubricating

Bronze Bushing Self Lubricating Cam Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 19.050 mm
      (Equiv. 0.75 in.)
    • Length 34.925 mm
      (Equiv. 1.375 in.)
    • Thread (F) 3/8-24 UNF
    • Thread Length (E) 9.525 mm
    • Roller Width (B) 12.700 mm
    • Material Steel and Bronze
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • NCF-20
      • NCF20
      View full details

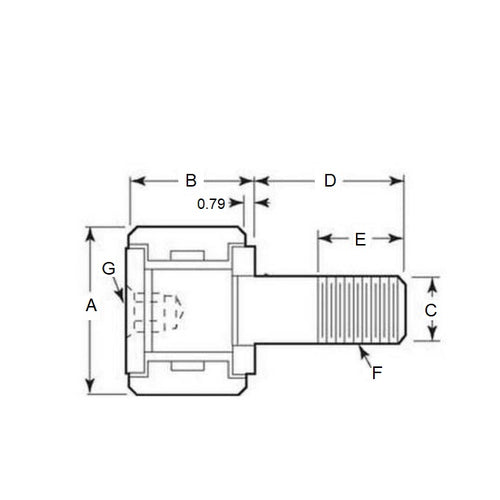

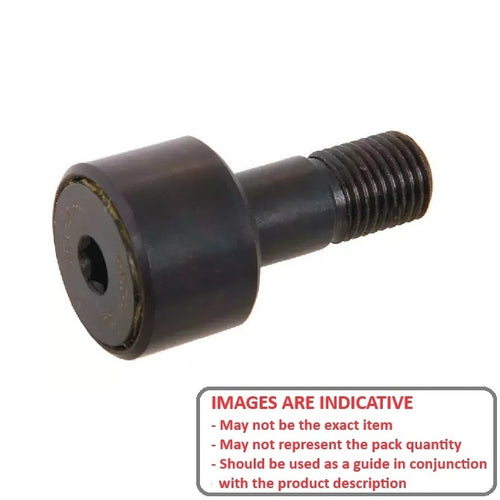

      NCF20RSDiagramNCF20RSImage
