MAG-D-19-032-C3T - Datasheet
MBA
Category Information

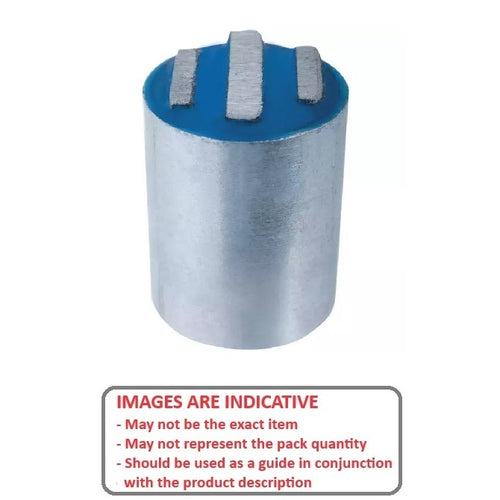

Magnets - 3 Pole - Ceramic Insulated Aluminium Tapped Blind HoleCeramic Insulated Aluminium Tapped Blind Hole 3 Pole Magnets. Extended poles can be lightly machined. With tapped blind hole in base for mounting. Insulated aluminium casing.
- Non conductive hard brittle material
- Performs best at temperatures below 249 oC
- Can be cut with a diamond wheel
- Difficult to grind and can't be machined or drilled by normal methods
- Tolerance 0.13mm on all dimensions
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

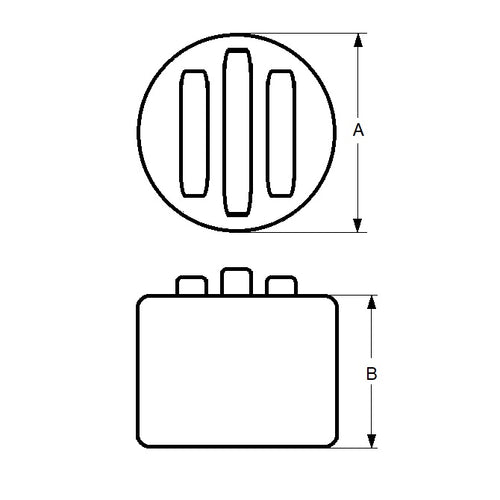

- Diameter
:
19.050
mm
(Equiv. 0.75 in.) - Length
31.750
mm
(Equiv. 1.25 in.) - Pull 10.8 kg
- Tapped Hole Size 10-32 UNC
- Hole Depth 4.8 mm
Product Compliance and Data
Additional Resources
Cross References
- MAG112
- MAG-112
