0R-0191-0305-ALC-T30 - Datasheet
MBA
Category Information

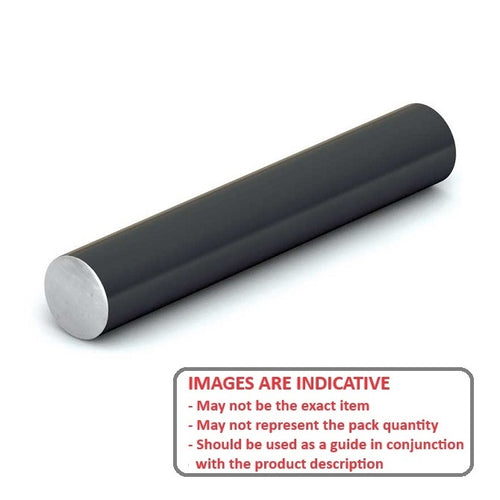

Shafting - Linear - Aluminium - Ceramic Coated - UntappedUntapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.
- Weld spatter, contaminants and paints will not stick.
- Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
- Shaft ends are not coated
Product Data
- Outside Diameter
:
19.050
mm
- 0.010 / - 0.030
(Equiv. 0.75 in.) - Length
304.8
mm
(Equiv. 12 in.) - Material Ceramic Coated Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 1031K23
- PBC-1062
- PBC1062
