SLQ-1905-2858-10160 - Datasheet
MBA
Category Information

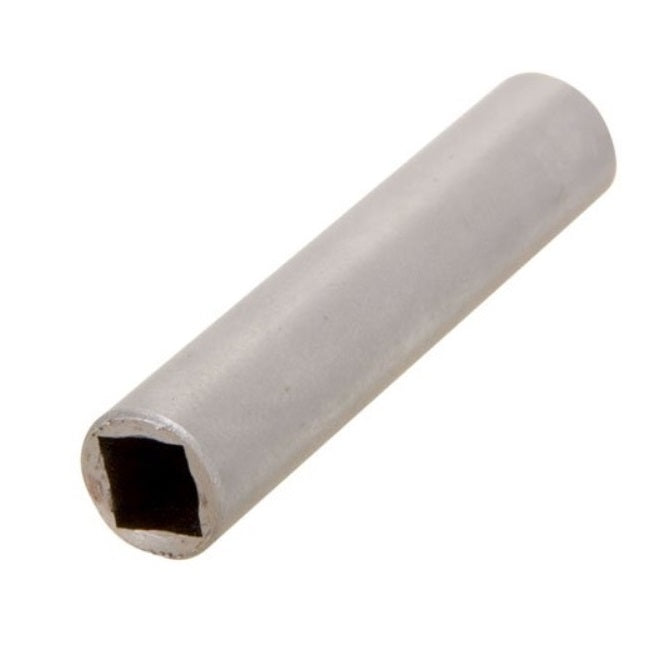

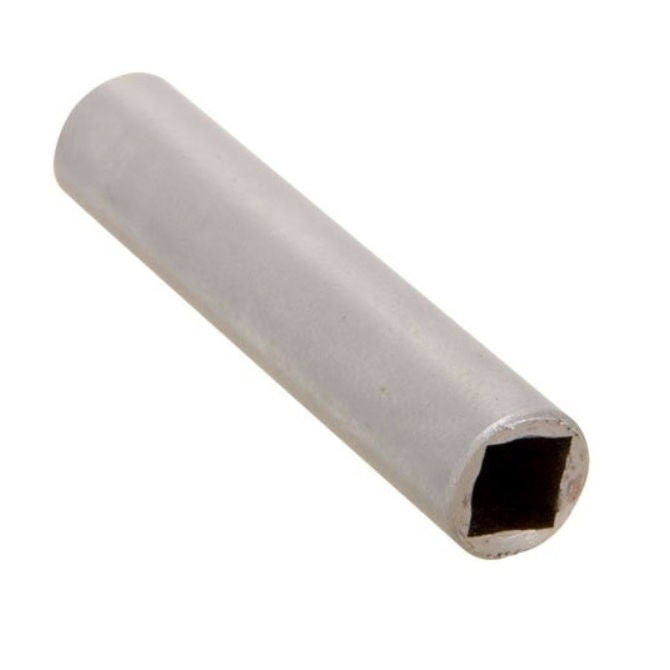

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in).
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
19.050
mm
+/- 0.0254
(Equiv. 0.75 in.) - Outside Diameter (C)
28.575
mm
(Equiv. 1.125 in.) - Length (B)
101.600
mm
(Equiv. 4 in.) - Actual Square Size (A) 19.177 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- SHS-P75
- SHSP75
- A7C19-P075
- A7C19P075
