0R-0191-0229-ALC-T30 - Datasheet

MBA

Category Information

Shafting - Linear - Aluminium - Ceramic Coated - Untapped

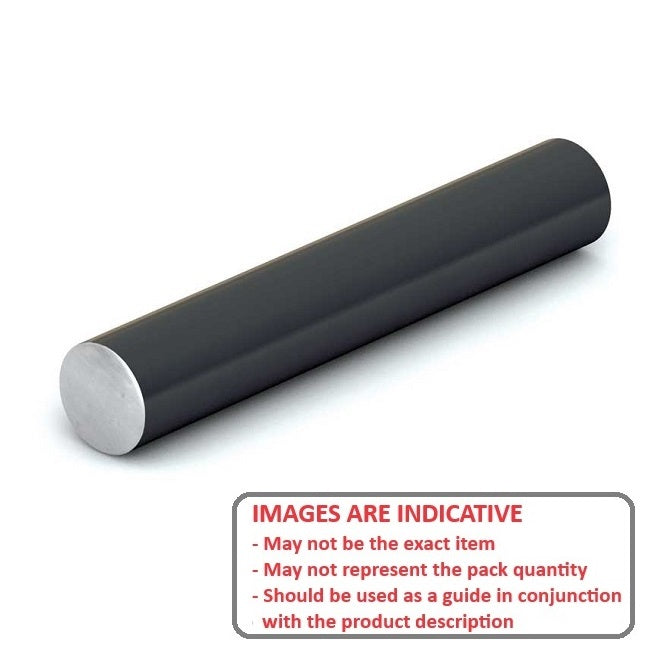

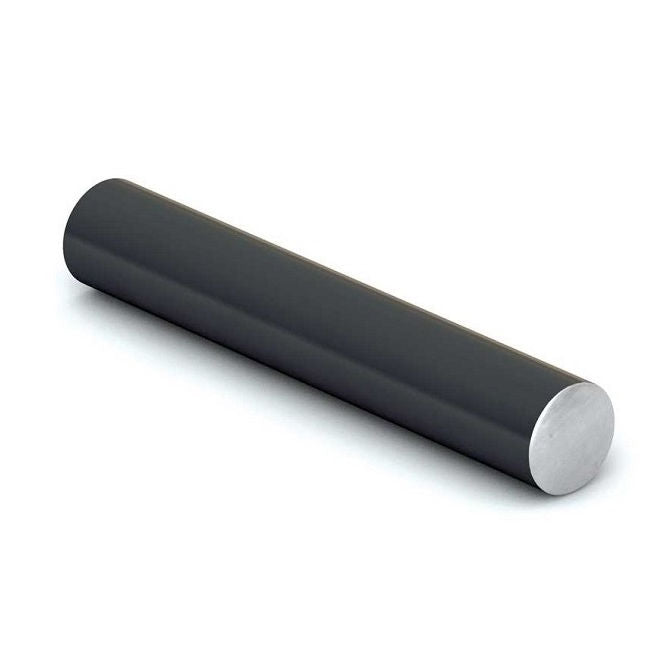

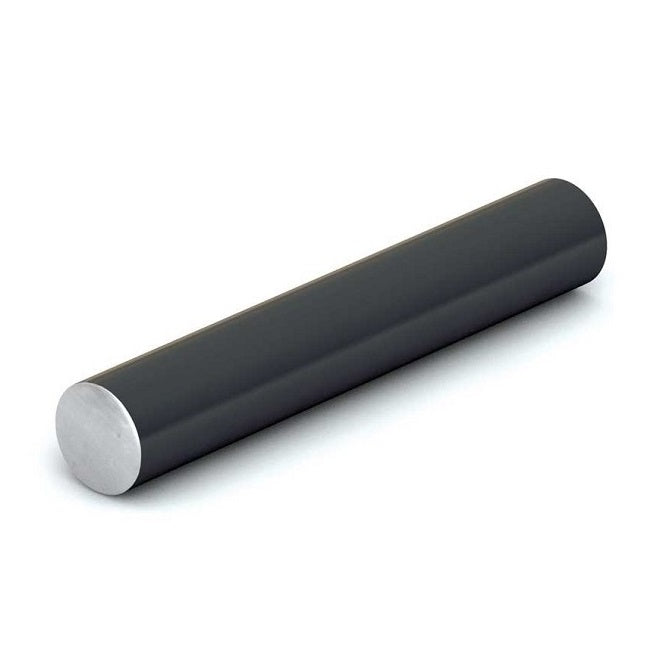

Untapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.

  • Weld spatter, contaminants and paints will not stick.
  • Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
  • Shaft ends are not coated

Product Data

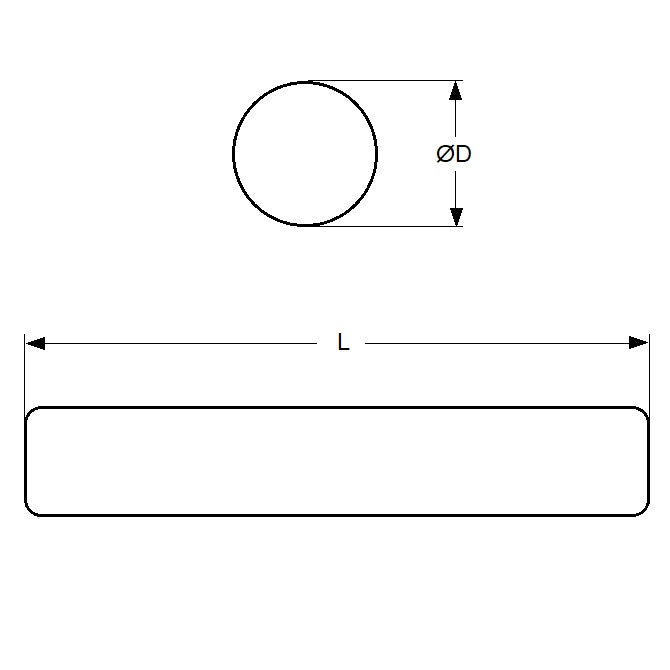

  • Outside Diameter : 19.050 mm - 0.010 / - 0.030
    (Equiv. 0.75 in.)
  • Length 228.6 mm
    (Equiv. 9 in.)
  • Material Ceramic Coated Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 1031K22
  • PBC1061
  • PBC-1061
