Miniature Bearings Australia
LVL-10RS - Datasheet
MBA
Category Information

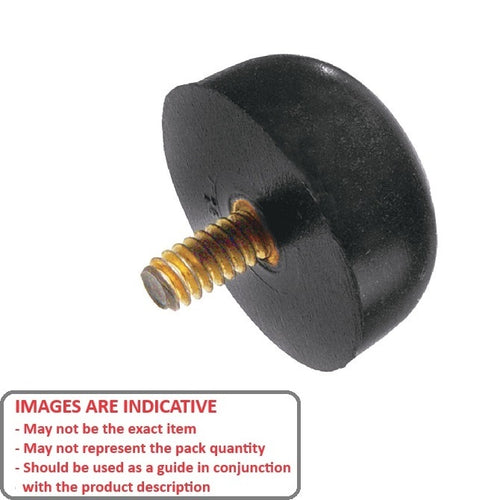

Bumpers - DomedDomed Bumpers. Built in steel screw for easy instrallation. Made with abrasion resistant SBR rubber. Resistant to abrasion and oxidation. Excellent cushioning and vibration control.
- Non staining, non marring polyurethane. Also see Mounts - Buffers
- Sold by the pad - number of bumpers per pad shown in the listings.
- Peel off and apply.
- Clear.
- 60-70 Shore A hardness.

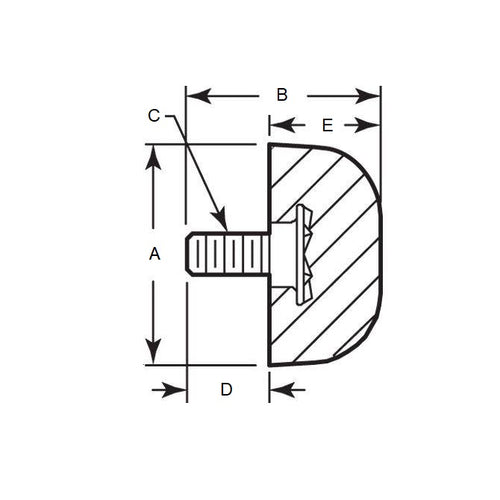

Product Data
- Diameter (A)
:
19.050
mm
(Equiv. 0.75 in.) - Overall Height (B)
20.625
mm
(Equiv. 0.812 in.) - Thread 8-32 UNC (4.17mm)
- Thread Length (D) 9.525 mm
- Bumper Height (E) 11.100 mm
- Material Elastomer
