Miniature Bearings Australia
0R-0191-0152-CP-T25 - Datasheet
MBA
Category Information

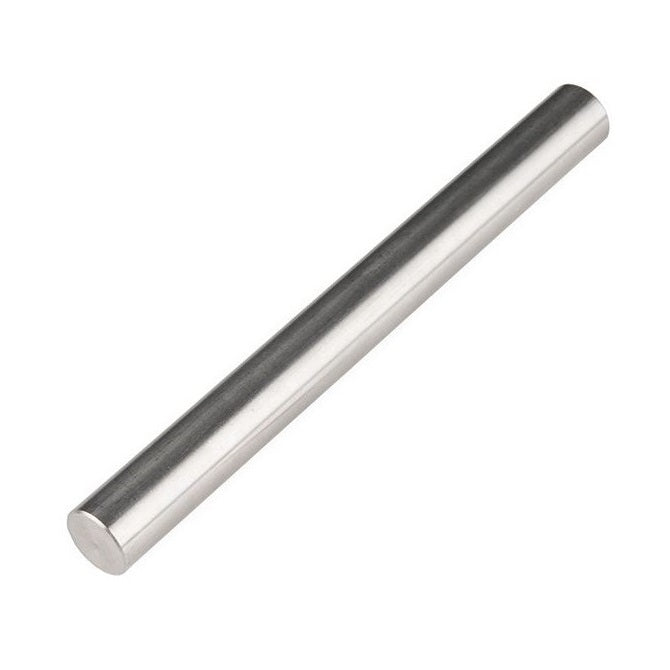

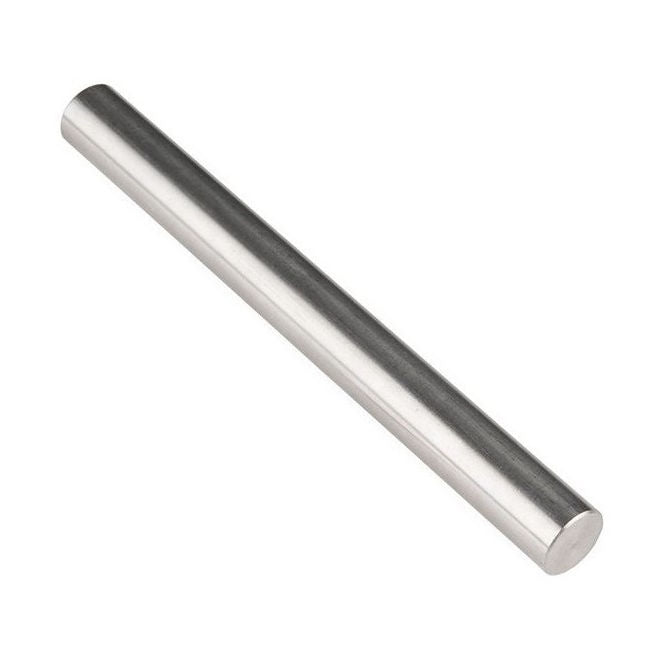

Shafting - Precision Ground - Chrome PlatedChrome Plated Precision Ground Shafting. Precision ground shafting. AISI C1060 and chrome plated for corrosion resistance. Case hardened and recommended for use with precision bearings. Ends are not plated.
- An expanded range may be available on special order. Please enquire.
- Case hardened to 60-65 Rockwell C
- Chrome plated for corrosion resistance
Product Data

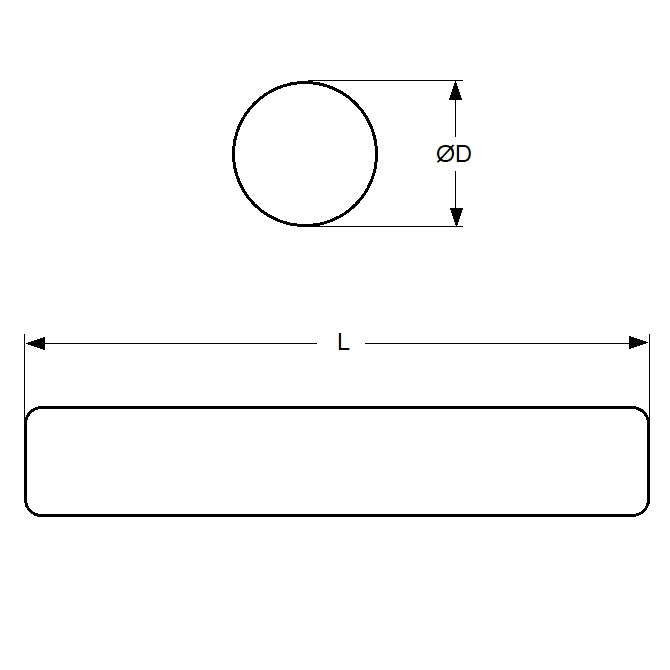

- Diameter (d)
:
19.050
mm
- 0.013 / - 0.025
(Equiv. 0.75 in.) - Length (L)
152.4
mm
(Equiv. 6 in.) - Material Chrome Plated Steel
- Surface Finish 0.30 Microns
- Hardness 60-65 Rockwell C
- Ends Finished and Chamfered
- Material Chrome Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- 0R01910152CPT30
