Miniature Bearings Australia
FRB-30RS - Datasheet
MBA
Category Information

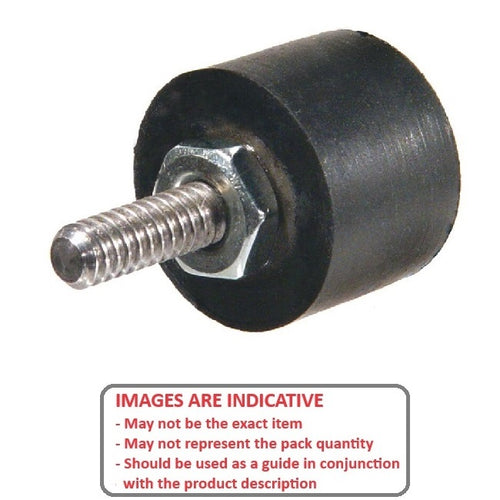

Bumpers - Cylindrical Male Thread - StandardStandard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers
- Rubber body and a threaded metal stud, designed to absorb impact, dampen vibrations, and reduce noise.
- The male thread allows for easy installation by screwing directly into a pre-tapped hole or by securing a nut on the opposite side of the surface.
- These are used in applications like machinery, vehicles, and industrial equipment to protect surfaces and components from damage.
Product Data
- Diameter (A)
:
19.050
mm
 (Equiv. 0.75 in.)
- Height (B)
15.875
mm
 (Equiv. 0.625 in.)
- Thread 5/16-18 UNC (7.94mm) x 1/2
- Thread Length 12.700 mm
- End Curved
- Durometer 45A
- Colour Black
- 4.750
- Material Neoprene Rubber
