FRB-202RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

    • Diameter (A) : 19.050 mm
      (Equiv. 0.75 in.)
    • Height (B) 15.875 mm
      (Equiv. 0.625 in.)
    • Thread 5/16-18 UNC (7.94mm)
    • Thread Length 6.350 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 9.525
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 9546K61
      View full details

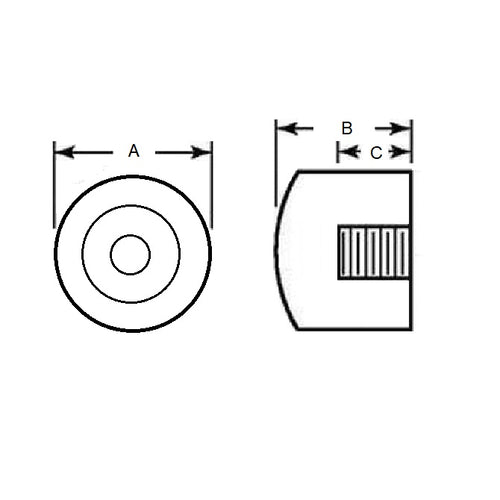

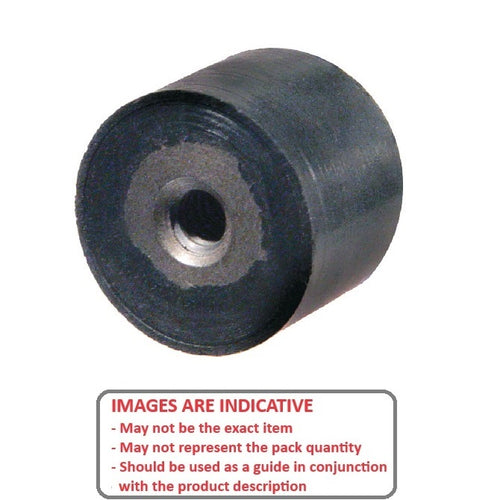

      FRB-202RSDiagramFRB-202RSImage
