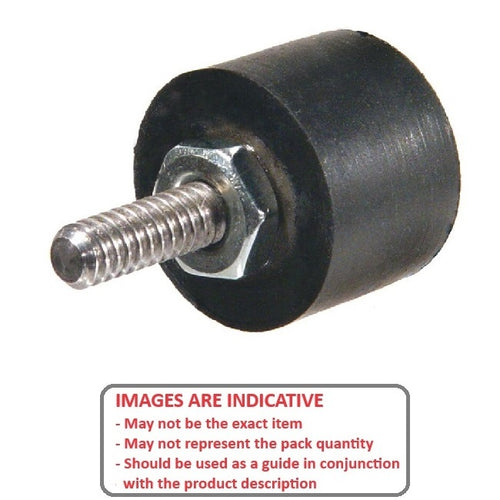

FRB-39RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

    Product Data

    • Diameter (A) : 19.050 mm
      (Equiv. 0.75 in.)
    • Height (B) 15.875 mm
      (Equiv. 0.625 in.)
    • Thread 1/4-28 UNF (6.35mm)
    • Thread Length 31.750 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 4.750
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details
      FRB-39RSDiagramFRB-39RSImage
