CCF875RS - Datasheet

MBA

Category Information

Roller Followers - Crown

Crown Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 19.050 mm
      (Equiv. 0.75 in.)
    • Overall Width (D) 14.275 mm
      (Equiv. 0.562 in.)
    • Bore (B) 6.350 mm
      (Equiv. 0.25 in.)
    • Width (C) 12.700 mm
    • Crown Radius 10.000 deg
    • E 15.875 mm
    • Dynamic Load Rating 752.963 kg
    • Static Load Rating 1873.336 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 3689K11
      • CCF875
      • CCF-875
      View full details

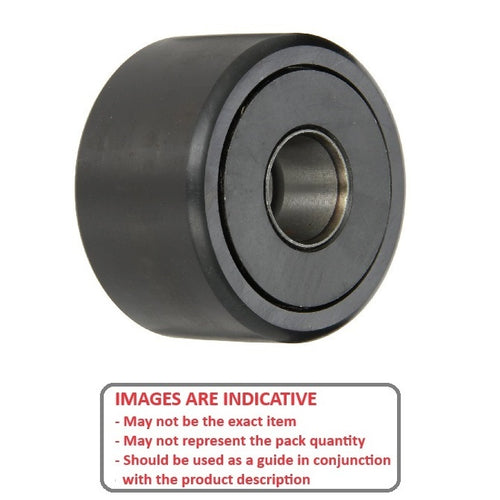

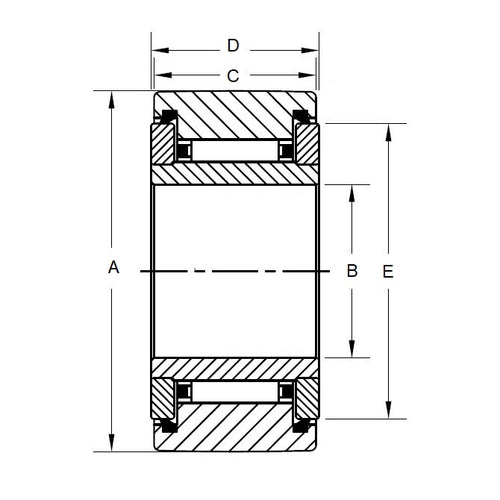

      CCF875RSDiagramCCF875RSImage
