LOHP-0191-114-TSS - Datasheet
MBA
Category Information

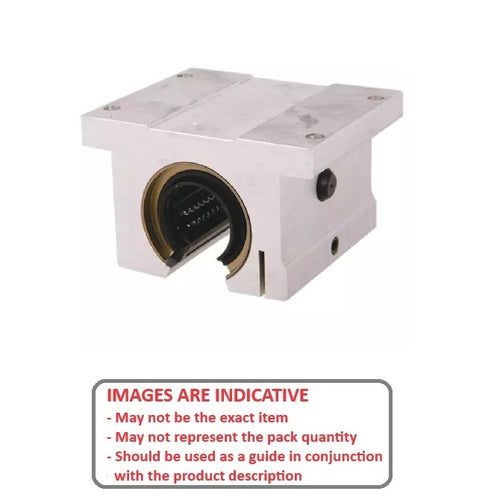

Linear - Thomson Super Smart Housings - Twin Pillow Block - OpenOpen Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

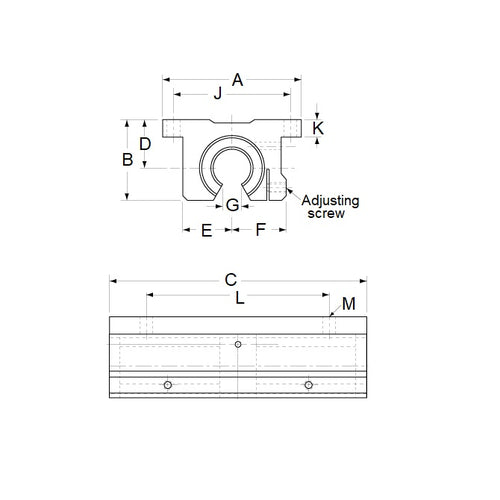

- Nominal Diameter : 19.050 mm
- Overall Length (C) 114.300 mm
- Height (B) 39.624 mm
- Width (A) 69.850 mm
- Centre Height (D) 23.800 mm
- Centre Width (E) 23.876 mm
- Centre Width (F) 25.400 mm
- Opening Distance (G) 10.414 mm
- Bolt Centres (J x L) 60.325 x 31.750 mm
- Dynamic Load Capacity 513 kgf
- Bolt Hole (M) 4.826 mm
- Flange Thickness (K) 7.874 mm
Product Compliance and Data
Additional Resources
Cross References
- Thompson® SSUTWNO-12
- Reid Tool® TLM-1150
- SSUTWNO12
- TLM1150
