ACE0225MRS - Datasheet

ACE

Category Information

Shock Absorbers - Adjustable - Standard

Standard Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 19.05 mm
      (Equiv. 0.75 in.)
    • Thread (T) M20 Extra Fine (20x1.5mm)
    • Length (A/F) 118.62 / 74.68 mm
      (Equiv. 4.67 in.)
    • Shaft Diameter (D) 4.83 mm
    • Effective Weight 2 - 227 KG
    • Wrench Flat (EE) 17.46 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE0225M
      • ACE-0225M
      View full details

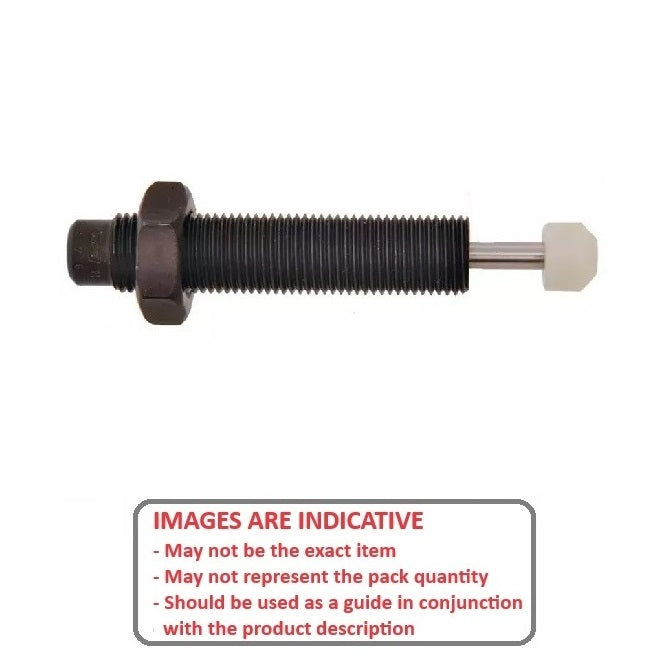

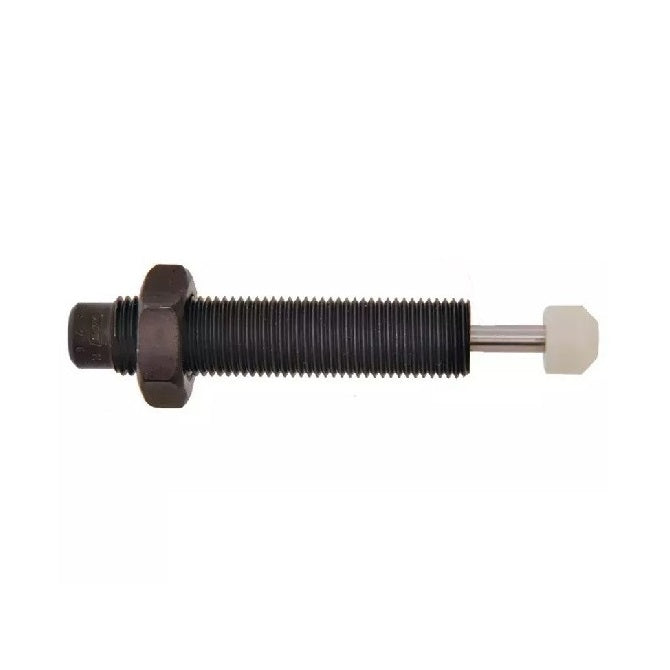

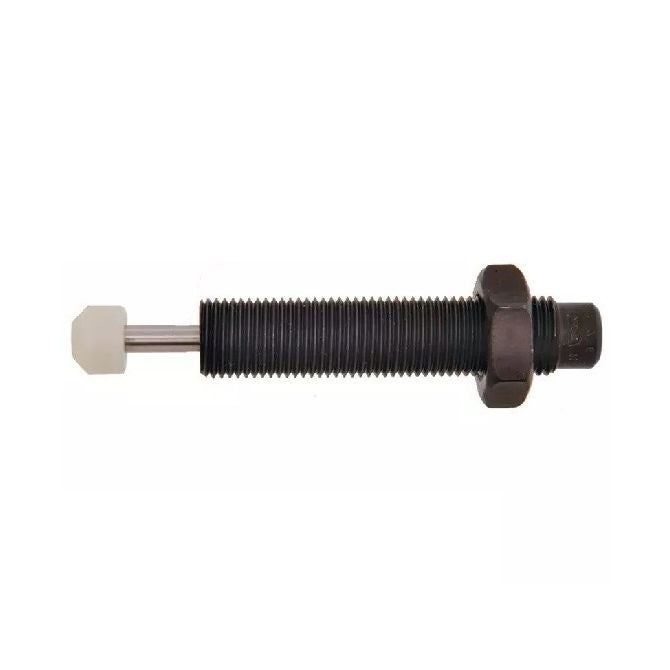

      ACE0225MRSDiagramACE0225MRSImage
