LCHP-0191-044-CC - Datasheet
MBA
Category Information

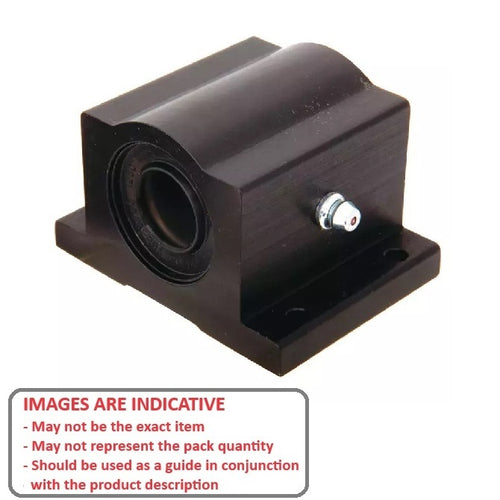

Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.

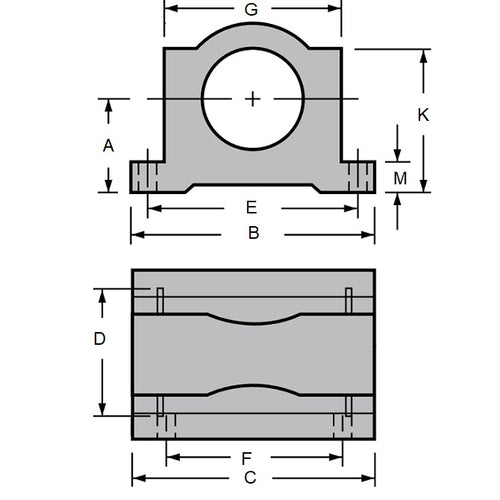

Product Data
- Nominal Diameter
:
19.05
mm
(Equiv. 0.75 in.) - Widths (B x C)
69.85 x 52.39
mm
(Equiv. 2.75 in.) - Length (D)
44.45
mm
(Equiv. 1.75 in.) - Bolt Distances (E x F) 60.33 x 31.75 mm
- Bolt Hole Size 4.76 mm
- Height (K) 39.69 mm
- Centre Height (A) 23.80 mm
- G 47.63 mm
- M 7.94 mm
- Max Static Load Capacity 2766.91 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K15
- LMB315
- LMB-315
