REM-191-R-SN - Datasheet
MBA
Category Information

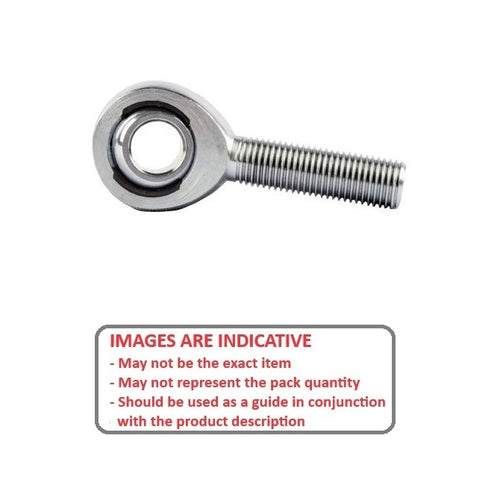

Rod Ends - Male - Stainless - 303 Housing and Ball Nylon Raceway303 Housing and Ball Nylon Raceway Stainless Male Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
19.050
mm
(Equiv. 0.75 in.) - Thread Size 3/4-16 UNF Right
- Min. Thread Length (l2) 44.45 mm
- Head Width (W) 17.45 mm
- Eye Width (W1) 22.23 mm
- Head Diameter (D) 44.45 mm
- Centre Height (l1) 73.03 mm
- Grease Nipple No
- Material Stainless Steel with Nylon
Product Compliance and Data
Additional Resources
Cross References
- SSPM-12
- SSPM12
