MAG-D-19-010-NS - Datasheet
MBA
Category Information

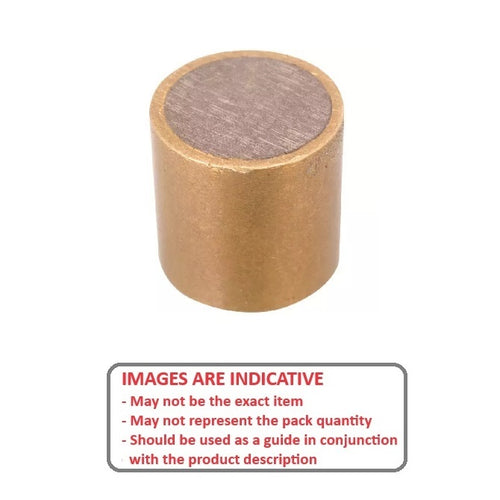

Magnets - Rare Earth - ShieldedShielded Rare Earth Magnets. Insulator shield prevents loss of magnetic flux when inserted into steel components or fixtures
- Shielded magnets supply holding forces in limited areas of steel tools, dies and fixtures
Product Data

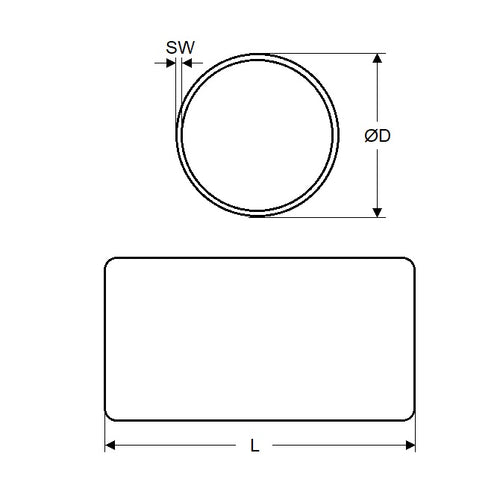

- Diameter
:
19.05
mm
+ 0.0 / - 0.13
(Equiv. 0.75 in.) - Length
9.53
mm
+ 0.0 / - 0.381
(Equiv. 0.375 in.) - Side Wall Thickness
0.16
mm
(Equiv. 0.006 in.) - Max Pull 4.46 kg
Product Compliance and Data
Additional Resources
Cross References
- IM37
- IM-37
