CLP-191-0889-CZ-HB - Datasheet
MBA
Category Information

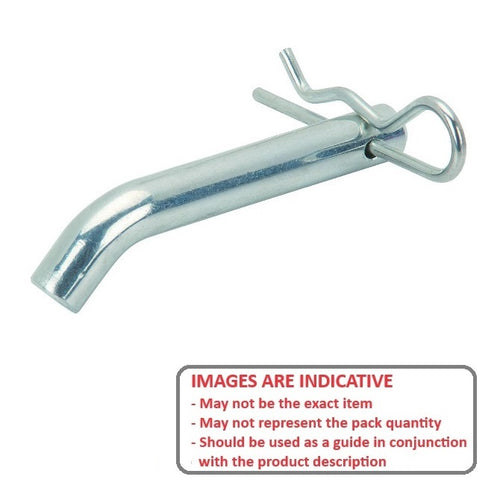

Pins - Clevis - Handle - Bent - Pin LockingPin Locking Bent Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Bent at a 15o angle
- Includes zinc plated R-Clip
Product Data

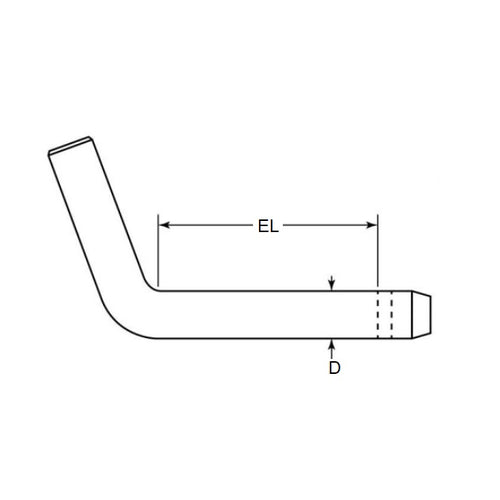

- Nominal Pin Diameter (D)
:
19.05
mm
- 0.10 / - 0.28
(Equiv. 0.75 in.) - Grip Length (EL)
88.90
mm
+ 0.51 / - 0.00
(Equiv. 3.5 in.) - Pin Finish Zinc Plated
- Handle Finish Zinc Plated
- Handle Material Zinc Plated
- Material Carbon Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- 90146A214
- WMG45
- WMG-45
- CLP1910889ZHB
