PBL320RS - Datasheet

MBA

Category Information

Linear - Rail Supports - With Shaft - One Piece

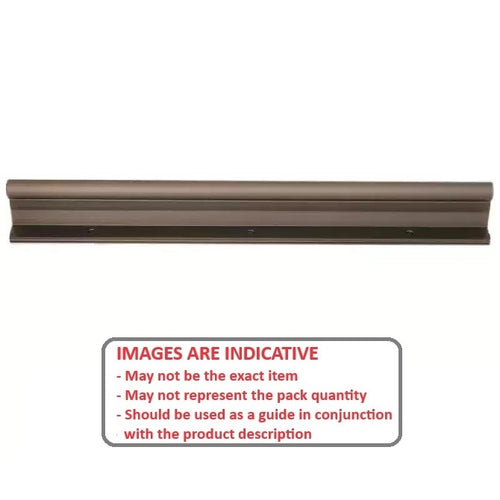

One Piece With Shaft Rail Supports Linear. One piece construction made from 6061-T6 Aluminium with ceramic coating to Mil-8625. Suitable for use with Frelon lined linear bearings.

  • Not suitable for linear ball bearings
  • Weld spatter, paints and other contaminants will not stick to the shaft.
  • Vibration resistant and non-magnetic.
  • Not suitable for harsh washdown environments.

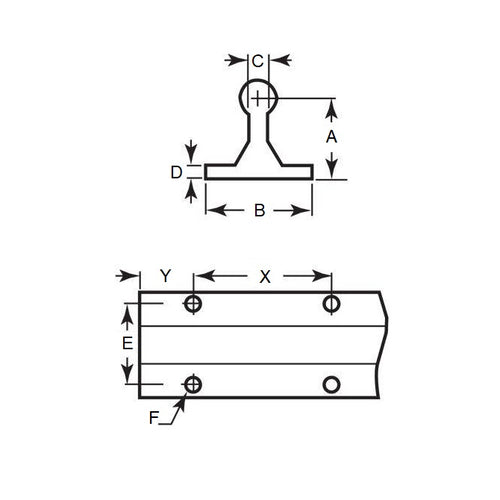

Product Data

  • Suitable Shaft Size (d) : 19.05 mm
  • Height to Shaft Centre (H) 38.10 mm
  • Length (+0/-1.59mm) 609.60 mm
  • Foot Height (V) 6.35 mm
  • Base Width (A) 44.45 mm
  • Support Angle (a) 152.4 °
  • Hole Spacing (T) 5.61 mm
  • Base Mtg. Hole (U) 31.75 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 1049K25
    • Reid Tool® PBL-320
    • PBL320
    View full details
