CLP-191-1651-CZ-HPC - Datasheet
MBA
Category Information

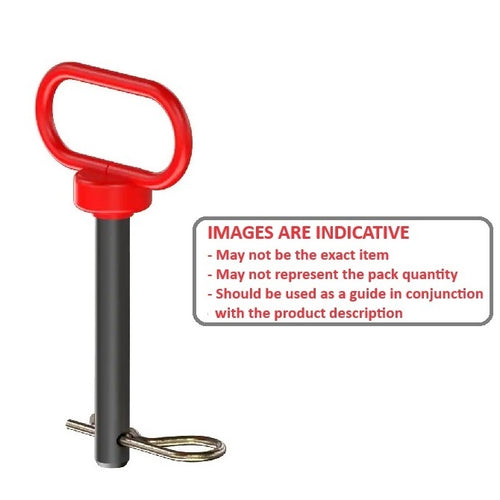

Pins - Clevis - Handle - Straight - Pin Locking - Powder CoatedPowder Coated Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated high tensile.
- Includes zinc plated R-Clip
Product Data

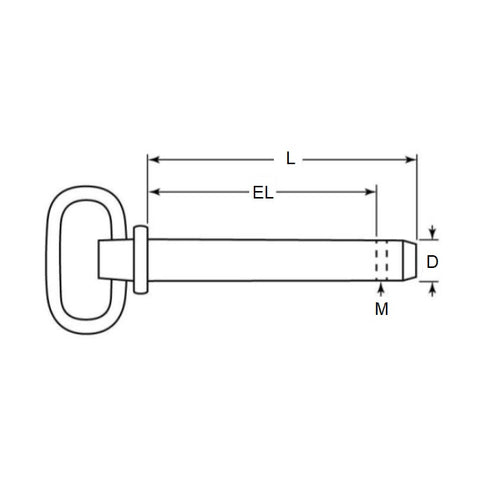

- Nominal Pin Diameter (D)
:
19.05
mm
- 0.10 / - 0.28
(Equiv. 0.75 in.) - Grip Length (EL)
165.10
mm
+ 0.51 / - 0.00
(Equiv. 6.5 in.) - Pin Finish Zinc Plated
- Handle Finish Powder Coated
- Handle Material Red Vinyl
- Material High Tensile Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- WMG-20
- WMG20
- CLP1911651ZHPC
