Miniature Bearings Australia
CLP-191-1588-CZ-H - Datasheet
MBA
Category Information

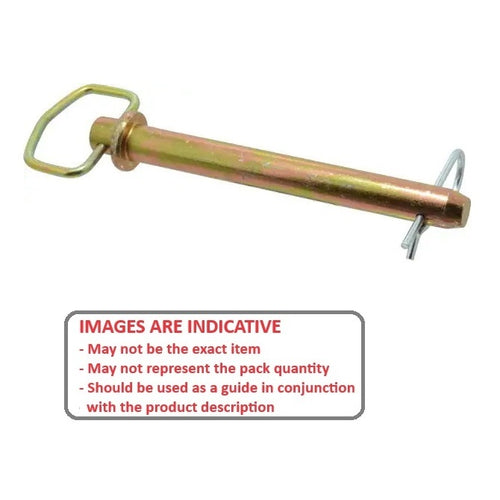

Pins - Clevis - Handle - Straight - Pin Locking - PlainPlain Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Includes zinc plated R-Clip
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

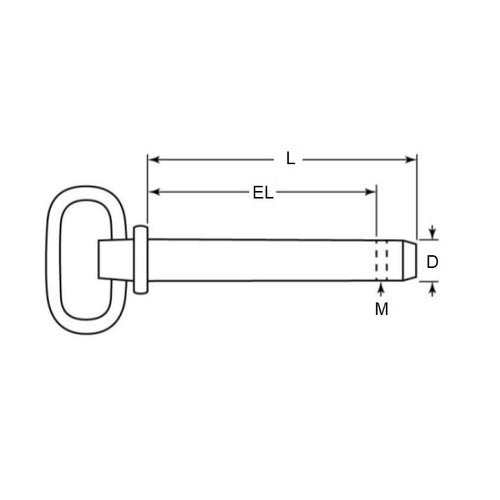

- Nominal Pin Diameter (D)
:
19.05
mm
- 0.10 / - 0.28
(Equiv. 0.75 in.) - Grip Length (EL)
158.75
mm
+ 0.51 / - 0.00
(Equiv. 6.25 in.) - Pin Finish Zinc Plated
- 4.0
- Handle Finish RCL-032-065-Z
- Handle Material Heat treated Steel
- Material Carbon Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- CLP-557
- CLP1911588ZH
- CLP557
