CLP-191-1080-CZ-H - Datasheet
MBA
Category Information

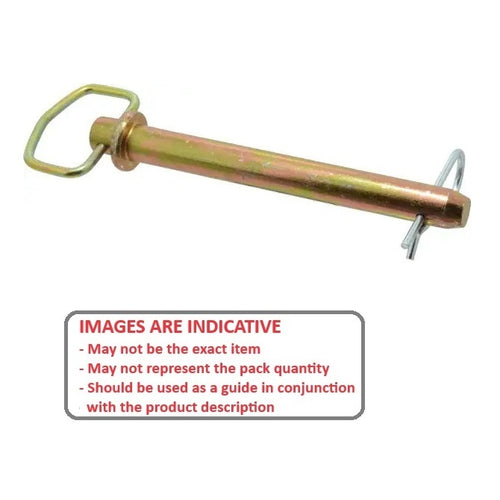

Pins - Clevis - Handle - Straight - Pin Locking - PlainPlain Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Includes zinc plated R-Clip
Product Data

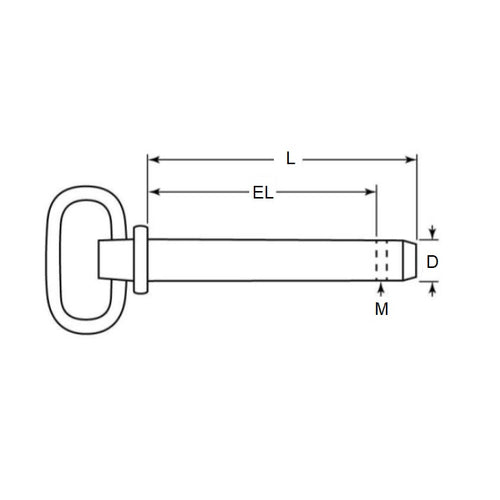

- Nominal Pin Diameter (D)
:
19.05
mm
- 0.10 / - 0.28
(Equiv. 0.75 in.) - Grip Length (EL)
107.95
mm
+ 0.51 / - 0.00
(Equiv. 4.25 in.) - Pin Finish Zinc Plated
- Handle Finish Zinc Plated
- Handle Material Heat treated Steel
- Material Carbon Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- CLP-555
- CLP1911080ZH
- CLP555
