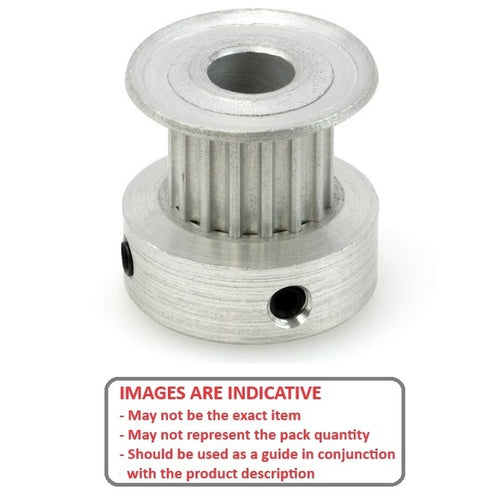

P-020G-018-060FH-AL-G-064 - Datasheet
MBA
Category Information
Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Through BoreThrough Bore 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Set Screw and EZI-LOK Hubs
Product Data
- Number of Teeth : 18
- Max Belt Width
6.00
mm
(Equiv. 0.236 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Bore Type Finished
- Locking Type Set Screw
- Type 1
- Pitch Dia. (PD) 11.45 mm
- Flange Diameter (FD) 16.1 mm
- Overall Length 14.3 mm
- Hub Diameter (HD) 16.1
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 18-2P06-6CA3
- 3764N106
- 182P066CA3
- A6A51018DF0608
- A6A51-018DF0608
