P-025T-018-050A - Datasheet
MBA
Category Information

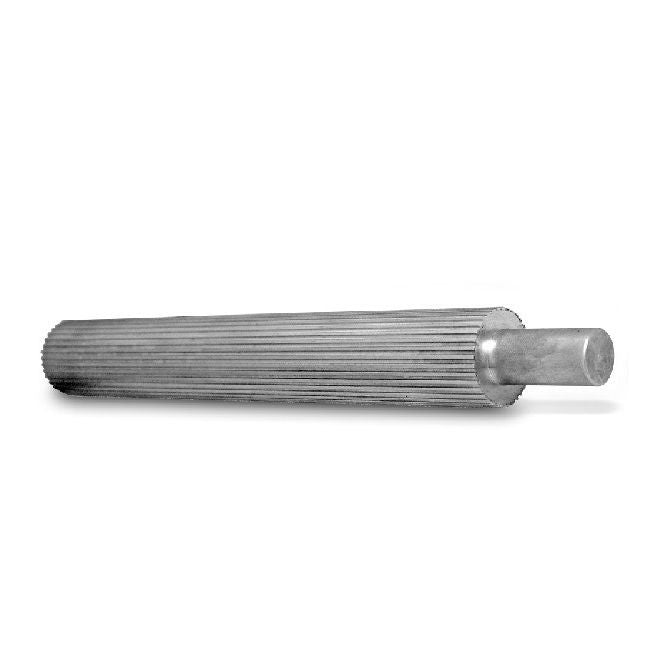

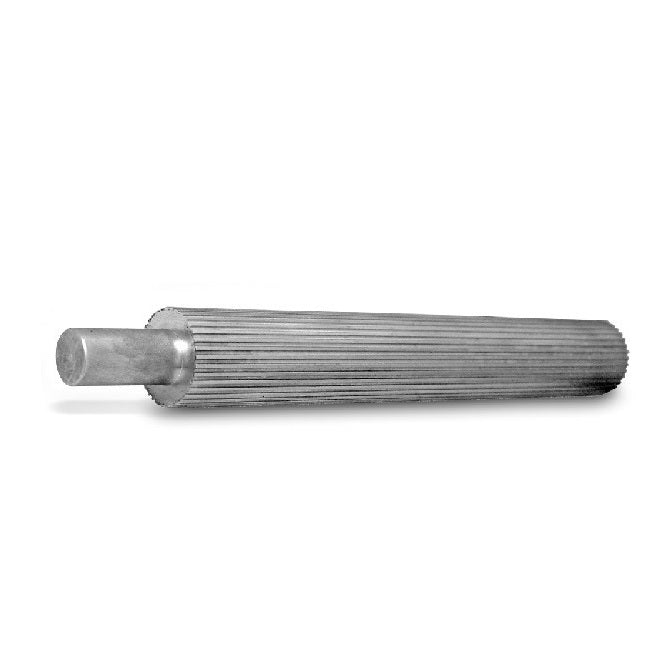

Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 18
- Min. Usable Length (L) 50.0 mm
- Pitch Diameter (PD) 14.40 mm
- Outside Diameter (OD) 13.80 mm
- Shank Diameter (D1) 9.50 mm
- Shank Length (Sl) 20.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates® 18T2.5-PS50A
- A6A31M018T05
- 18T25PS50A
