W0180-T-029-033-L-S4 - Datasheet

TW

Category Information

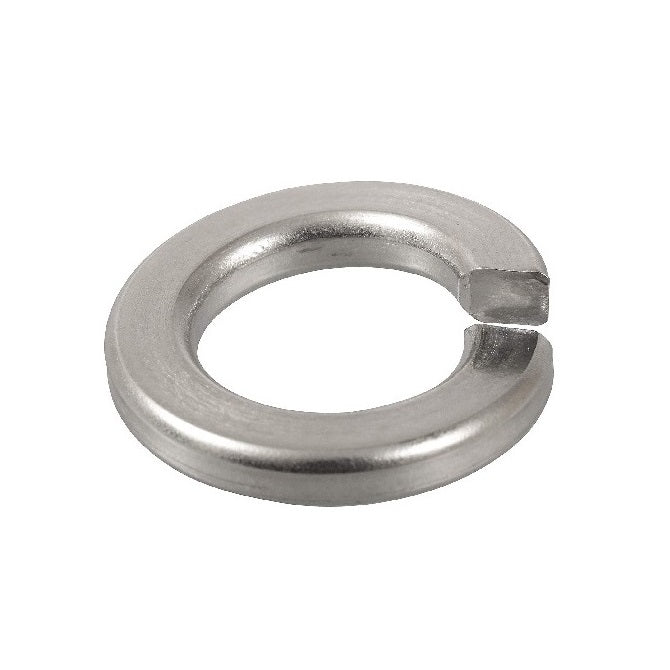

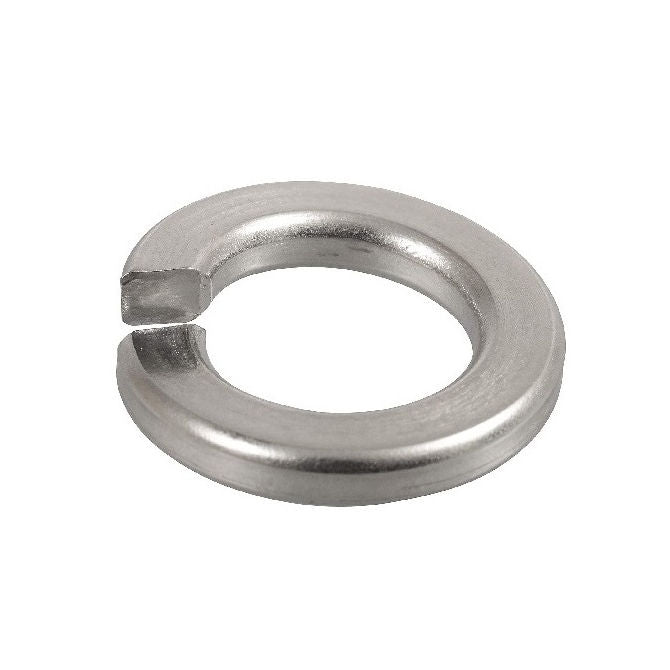

Washers - Lock - Split - Stainless Steel

Stainless Steel Split Lock Washers. Split type. 304 stainless steel selection.

  • Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
  • Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
  • Dimensions are nominal and may vary between batches.

Product Data

  • Nominal Inside Diameter : 18.00 mm + 0.8 / - 0.0
    (Equiv. 0.709 in.)
  • Outside Diameter 29.4 mm
    (Equiv. 1.157 in.)
  • Thickness 3.30 mm
    (Equiv. 0.13 in.)
  • Info 304 Stainless
  • Info M18
  • Info DIN 127 B
  • Actual ID (Ref) 18.2 mm
  • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best 836180
