OW-0180-0240-0160-R - Datasheet
MBA
Category Information

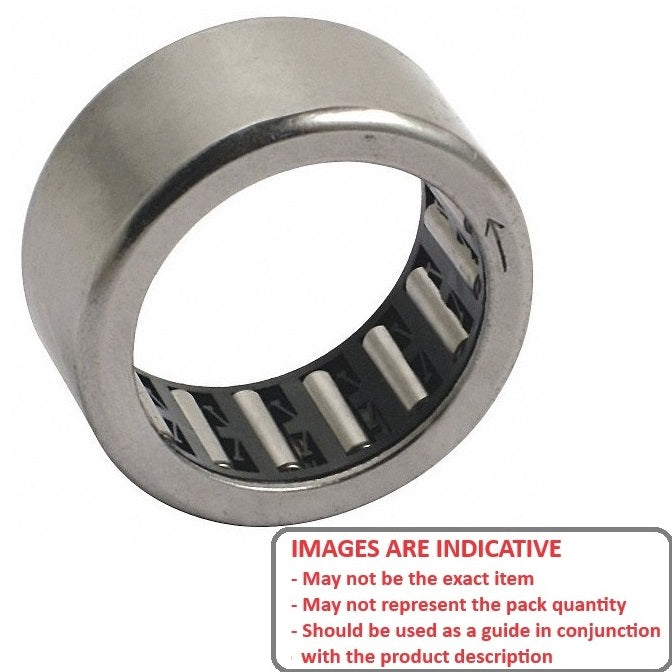

Bearings - One Way - RollerRoller One Way Bearings. Roller Clutch Bearings rotate in one direction only.
- One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
- Commonly used in over-runnung, or backstopping applications.
- The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
- Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.
Product Data

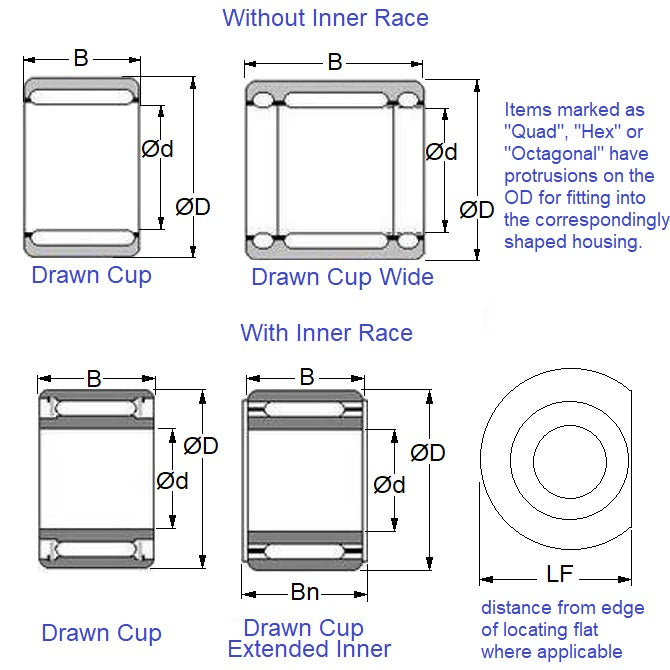

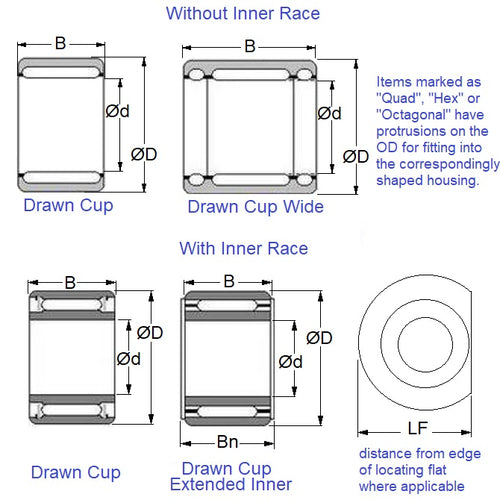

- ID (d)
:
18.000
mm
(Equiv. 0.709 in.) - OD (D)
24.000
mm
(Equiv. 0.945 in.) - Width (B)
16.000
mm
(Equiv. 0.63 in.) - Overrun Limiting Speed 7500 RPM
- Type Drawn Cup Standard
- Bearings Material Steel
- Max Torque 24.1 N.m
- Cage Material Steel
- Material Chrome Steel
